Sonotech® eXtra Fetal Heart Doppler
Designed as a Ultrasonic probe to easy find the FHB and more comfortable for pregnant.
Instruction marks are molded not printed and wont erased by using.
Head phone quality for clear sound and less noise
The option phone cable compatible for almost all apps so you can record by phone and enjoy the apps functions
Luxury package with magnetic lock for nice looking and better protection
Soft case available with two colors" purple & Gray"

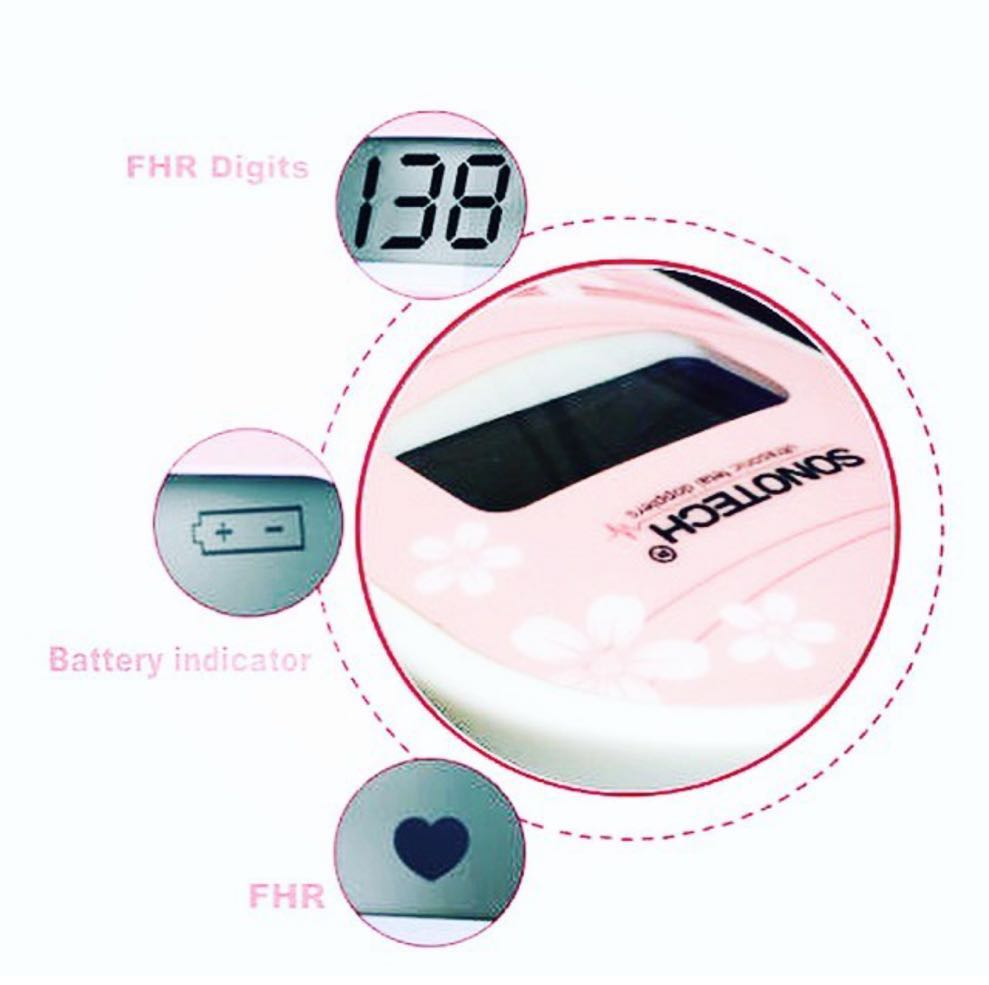

Small Fetal heart beat indicator.
Easy to use
Heart rate Display ( 25*14 mm)
Clear sound ,and less noise
Can hang it by hang lace
Automatic Display Freezing After remove from the body
Light weight of 80g, batteries included
Runs on AAA batteries and continuous working time is 8 hours
Options: Phone Cable .Mini speaker, Rechargeable battery &Charger ,Small bag (case)
FHR Performance
FHR Measuring Range: 50~240BPM (BPM: beat per minute)
Resolution: 1BPM
Accuracy: ±2BPM
Power consumption:<0.8W
Auto Shut-OFF: After 1 minute no signal, power off automatically.
Battery Type Recommended: Two pieces of 1.5 V DC battery (SIZE AA LR6).
Ultrasound Sensor:
Nominal Frequency: 2.0MHz,
Working Frequency: 2.0MHz±10%
P-: <0.5MPa
Iob: <10 mW/cm2
Ispta: <50mW/cm2
Ultrasonic Output Intensity: Isata<5 mW/cm2
Ultrasonic Output Power: P<10 mW
Working Mode: Continuous wave Doppler
Effective Radiating Area of Transducer: 157mm2±15%
Temperature: +5℃～+40℃
Humidity: ≤80％
Atmospheric Pressure: 70 kPa～l06kPa
Transport and Storage:
Temperature: -10℃～+55℃
Humidity: ≤93％
Atmospheric Pressure: 50 kPa～l06kPa
FHR Measuring Range: 50~240BPM (BPM: beat per minute)
Resolution: 1BPM
Accuracy: ±2BPM
Power consumption:<0.8W
Auto Shut-OFF: After 1 minute no signal, power off automatically.
Battery Type Recommended: Two pieces of 1.5 V DC battery (SIZE AA LR6).
Ultrasound Sensor:
Nominal Frequency: 2.0MHz,
Working Frequency: 2.0MHz±10%
P-: <0.5MPa
Iob: <10 mW/cm2
Ispta: <50mW/cm2
Ultrasonic Output Intensity: Isata<5 mW/cm2
Ultrasonic Output Power: P<10 mW
Working Mode: Continuous wave Doppler
Effective Radiating Area of Transducer: 157mm2±15%
Temperature: +5℃～+40℃
Humidity: ≤80％
Atmospheric Pressure: 70 kPa～l06kPa
Transport and Storage:
Temperature: -10℃～+55℃
Humidity: ≤93％
Atmospheric Pressure: 50 kPa～l06kPa
Standard:
Audio stereo Cable .................. 1Pcs
AAA Battery ............................... 2PcsHeadphone ............................... 1Pcs
Cleaning Cloth .......................... 1Pcs
Audio stereo Cable .................... 1Pcs

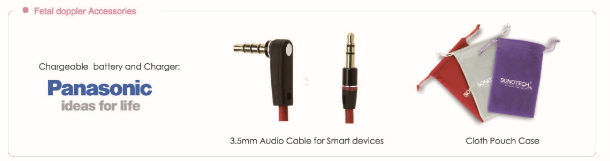

Options:
External mini Speakers
Carry Case
Audio smart device Cable (Android .iOs)
Audio smart device Cable (Android .iOs)
Rechargable Battery
Charger (Panasonic)
Charger (Panasonic)
Product Features
Small Fetal heart beat indicator.
Easy to use
Heart rate Display ( 25*14 mm)
Clear sound ,and less noise
Can hang it by hang lace
Automatic Display Freezing After remove from the body
Light weight of 80g, batteries included
Runs on AAA batteries and continuous working time is 8 hours
Options: Phone Cable .Mini speaker, Rechargeable battery &Charger ,Small bag (case)
Product Specifications
