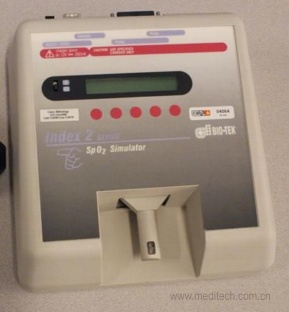

BIOTEK Index 2 Series SPO2 Simulator



BIOTEK Index 2 Series SPO2 Simulator,προσομοιωτή οξύμετρο,محاكاة مقياس التأكسج,oximeter simulator,血氧饱和度模拟器Index 2 SpO2 Simulator


Index 2 Series combines Fingersense our new patented simulated finger with the first comprehensive probe and electronics test to fully analyze pulse oximeters and probes.

BIOTEK Index 2 Series SPO2 Simulator,προσομοιωτή οξύμετρο,محاكاة مقياس التأكسج,oximeter simulator,血氧饱和度模拟器

OVERVIEW

Index 2’s new "Fingersense" assures compatibility with virtually any oximeter on the market today. No hardware or firmware upgrades are necessary. Fingersense incorporates new electronic physiology that instantly recognizes and adapts to all types of oximeter simulation technologies. Use its new user definable "make" feature and pulse oximeter makes that are not included within Index can be verified with acceptable accuracy. With the rapid increase of SPO2 monitors, the new physiology in the electronics help insure that Index 2 will be compatible with your pulse oximeter.

Electrical simulation for testing the pulse oximeters alone and probe testing is now available in the "E" version. This allows you to test the oximeter without the probe in-line and all simulations are available. The probe analysis includes:



LED test: Voltage drop across both red and infrared diodes

Photodiode test: Detector response to a 1 mA illuminating current (both red and infrared)

Resistive wire check: Resistances between all wires

Index 2 lets you simulate arterial oxygen saturation (SPO2) from 35% to 100% oxygenation. Heart rate can also be varied from 30 to 250 BPM. In addition, Plethysmographic waveforms can be set from 0-100% amplitude, simulating the range from no pulse up to a very strong pulse. These basic features allow Index 2 to simulate several different patient conditions such as:

Normal Patient

Patient with a weak pulse

Geriatric patient



Obese patient

Bradycardia

Tachycardia

Bio-Tek's test simulations verify the pulse oximeters SpO2 and heart rate alarms for response time. Use Index 2 for pre-purchase evaluations to determine how well different pulse oximeters respond to artifacts such as motion, ambient sunlight and 50/60 Hz artificial light.

In addition, Index 2 comes with full computer control, a built-in RS232, and a printer port. Test results may be transferred to Bio-Tek's Equipment Management System via OTIS for Windows (OFW) or sent directly to an attached printer for hard-copy results.



FEATURES

Portable

9 preloaded manufacturers R-Curves

User definable ‘makes’ for most other manufacturers

5 downloadable R-curve spaces available >

Patented physiological finger for a complete SPO2 test

Electrical probe test and electrical oximeter simulation

RS232 Port



APPLICATIONS

On-going preventative maintenance testing

Isolate sensor versus electronics problems

Determine performance variations in less than ideal conditions

Incoming inspections and repair

Pre-purchase evaluations



SPECIFICATIONS



%O2

Range: 35-100%

Resolution: 1%

Accuracy: 100-75% ±1%, ±accuracy of the pulse oximeter under test 74-50% ±2% ±accuracy of the pulse oximeter under test Less than 50% unspecified

Repeatability: ±1 standard deviation



Rate

Range: 30-250BPM

Resolution: 1 BPM

Accuracy: 1% ±1BPM



Pulse Amplitude

Range: 0-100% of nominal pleth amplitude

Resolution: 1%

Accuracy: ±1% of setting, nominal pulse


Display

2 line x 24 character super twist LCD



ACCESSORIES

OTIS for Windows Test Integration Software

Printer

Carrying case

RS232 cable

Printer cable

Battery eliminator

Upgrades

VERSIONS


Index 2F
Optical finger; now with enhanced optics for a more physiological finger
Index 2E
Electrical oximeter simulation/testing and electrical probe testing
Index 2FE
Both optical finger and electrical simulations/probe testing
