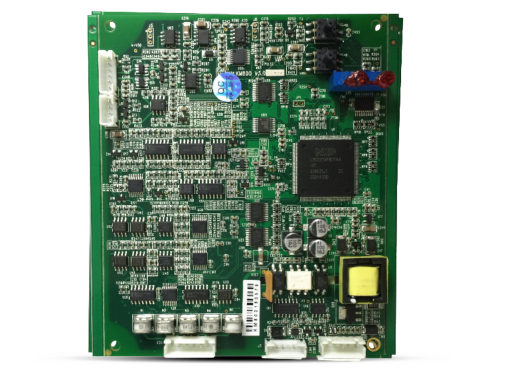

MD-M01 Multiparameter module
MD-M01 Multiparameter patient monitor module Can measure circuits of physical parameters as ECG. RESP. NIBP. SPO2. Temp (optional) IBP (optional) etc.
MD-M01 Multiparameter patient monitor module Can measure circuits of physical parameters as ECG. RESP. NIBP. SPO2. Temp (optional) IBP (optional) etc.
Read More
The adoption of a CPU controls seven parameters functional modules with high master degrees
High reliability high performance low-cost low consumption
Small size can be easily integrated to the whole sets of the monitor equipment after specially designed
HR
Adult            15 ~ 300 BPM
Neo/Ped            15 ~ 350 BPM
Accuracy  ± 1% or ± 1bpm choose the greater one
Resolution      1BPM
RESP rate Range and Accuracy
Adult        7~120BrPM
Neo/Ped        ~150 BrPM
Resolution 1 BrPM
Accuracy ±2 BrPM

NIBP
Adult Mode
SYS  40 ~ 270mmHg
DIA  10 ~ 215 mmHg
MEAN 20 ~ 235 mmHg

Pediatric Mode
SYS  40 ~ 200 mmHg
DIA  10 ~ 150 mmHg
MEAN 20 ~ 165 mmHg

Neonatal Mode
SYS  40 ~ 135 mmHg
DIA  10 ~ 100 mmHg
MEAN  20 ~ 235 mmHg
stalic state pressure range  0~300mmHg
Stalic state pressure accuracy ±3mmHg

blood pressure accuracy: Maximum Mean error ±5mmHg;
                                               Maximum Standard deviation  ±8mmHg

SPO2
Range           0 ~ 100 %
Resolution 1 %
Accuracy 70~100%:±2 DIGIT
                     0%  ~ 69% unspecified
Pulse Rate
Range                   20~300bpm
Resolution     1BPM
Accuracy  ±3bpm

TEMP
Range               0 ~ 50 °C
Resolution 0.1°C
Accuracy ±0.1°C(not include sensor error)
IBP Accuracy: ± 1mmHg or ± 2%,take the greater one (not include sensor error)

Power supply:
Request of exterior power supply:input voltage 12V DC(±10%),0.5A,lines wave <100mv
Power consume:stalic state < 2W,work < 6W.
Isolated: 4000VAC     Leak current  <0.5mA
Work Environment
Operating temperature: 0 ~ 55°C
Storage temperature:        -20 ~ 65 °C
Operating  Humidity:    15% ~ 95 % (no coagulate)
Storage Humidity:        10% ~ 95 %(no coagulate)

Size:   120mm x 100mm x 25mm
Weight: < 300 g(not include accessories)
MD-M01 Pump for NIBP
MD-M01 Valve
Internal Cable Temp
Nut M10
NIBP Cuff
ECG Cable (3 Leads)
ECG Cable (5 Leads)
ECG Alligator Clips (Metal)
SpO2 Cable (Adult)
SpO2 Cable (New born)
SpO2 Cable (Adult finger clip)
SpO2 Cable (Child finger clip)
SpO2 Cable (multi-site Y type)
SpO2 probe (Soft tip)
SpO2 External Cable
NIBP Cuff (infant 8 - 14 cm 5/Bag)
NIBP Cuff (Child 13 - 20 cm 5/Bag)
NIBP Cuff (Small Adult 18 - 26 cm 5/Bag)
NIBP Cuff (Adult 26 - 35 cm 5/Bag)
NIBP Cuff (Adult Long 29 - 38 cm 5/Bag)
NIBP Cuff (Large Adult 32 - 42 cm 5/Bag)
NIBP Cuff (Large Adult Long 35 - 44 cm 5/Bag)
NIBP Cuff (Thigh 42 - 50 cm)
NIBP Tube 150cm
Paper Role
Thermal printer
Patient Monitor Wall mounts (3 Models)
Patient Monitor Trolley (5 Models)
CO2 Sample Line
Nasal Tube
Power Adapter
Water-trap Column
Airway Adapter
IBP Adapter (2-IBP)
IBP Reusable Interface Cable
IBP Disposable Transducers

Product Features

    The adoption of a CPU controls seven parameters functional modules with high master degrees
    High reliability high performance low-cost low consumption
    Small size can be easily integrated to the whole sets of the monitor equipment after specially designed

Product Specifications

    HR
    Adult            15 ~ 300 BPM
    Neo/Ped            15 ~ 350 BPM
    Accuracy  ± 1% or ± 1bpm choose the greater one
    Resolution      1BPM
    RESP rate Range and Accuracy
    Adult        7~120BrPM
    Neo/Ped        ~150 BrPM
    Resolution 1 BrPM
    Accuracy ±2 BrPM

    NIBP
    Adult Mode
    SYS  40 ~ 270mmHg
    DIA  10 ~ 215 mmHg
    MEAN 20 ~ 235 mmHg

    Pediatric Mode
    SYS  40 ~ 200 mmHg
    DIA  10 ~ 150 mmHg
    MEAN 20 ~ 165 mmHg

    Neonatal Mode
    SYS  40 ~ 135 mmHg
    DIA  10 ~ 100 mmHg
    MEAN  20 ~ 235 mmHg
    stalic state pressure range  0~300mmHg
    Stalic state pressure accuracy ±3mmHg

    blood pressure accuracy: Maximum Mean error ±5mmHg;
                                                   Maximum Standard deviation  ±8mmHg

    SPO2
    Range           0 ~ 100 %
    Resolution 1 %
    Accuracy 70~100%:±2 DIGIT
                         0%  ~ 69% unspecified
    Pulse Rate
    Range                   20~300bpm
    Resolution     1BPM
    Accuracy  ±3bpm

    TEMP
    Range               0 ~ 50 °C
    Resolution 0.1°C
    Accuracy ±0.1°C(not include sensor error)
    IBP Accuracy: ± 1mmHg or ± 2%,take the greater one (not include sensor error)

    Power supply:
    Request of exterior power supply:input voltage 12V DC(±10%),0.5A,lines wave <100mv
    Power consume:stalic state < 2W,work < 6W.
    Isolated: 4000VAC     Leak current  <0.5mA
    Work Environment
    Operating temperature: 0 ~ 55°C
    Storage temperature:        -20 ~ 65 °C
    Operating  Humidity:    15% ~ 95 % (no coagulate)
    Storage Humidity:        10% ~ 95 %(no coagulate)

    Size:   120mm x 100mm x 25mm
    Weight: < 300 g(not include accessories)

Related Accessories

    MD-M01 Pump for NIBP
    MD-M01 Valve
    Internal Cable Temp
    Nut M10
    NIBP Cuff
    ECG Cable (3 Leads)
    ECG Cable (5 Leads)
    ECG Alligator Clips (Metal)
    SpO2 Cable (Adult)
    SpO2 Cable (New born)
    SpO2 Cable (Adult finger clip)
    SpO2 Cable (Child finger clip)
    SpO2 Cable (multi-site Y type)
    SpO2 probe (Soft tip)
    SpO2 External Cable
    NIBP Cuff (infant 8 - 14 cm 5/Bag)
    NIBP Cuff (Child 13 - 20 cm 5/Bag)
    NIBP Cuff (Small Adult 18 - 26 cm 5/Bag)
    NIBP Cuff (Adult 26 - 35 cm 5/Bag)
    NIBP Cuff (Adult Long 29 - 38 cm 5/Bag)
    NIBP Cuff (Large Adult 32 - 42 cm 5/Bag)
    NIBP Cuff (Large Adult Long 35 - 44 cm 5/Bag)
    NIBP Cuff (Thigh 42 - 50 cm)
    NIBP Tube 150cm
    Paper Role
    Thermal printer
    Patient Monitor Wall mounts (3 Models)
    Patient Monitor Trolley (5 Models)
    CO2 Sample Line
    Nasal Tube
    Power Adapter
    Water-trap Column
    Airway Adapter
    IBP Adapter (2-IBP)
    IBP Reusable Interface Cable
    IBP Disposable Transducers
