iSonic®
iSonic®  Wide band multi-frequency,Imaging Processing ,Imaging optimization and Compound enhance technology,touch pad and keyboard,high quality images and sensitivity

Pulse Wave Doppler & HPRF” (CW Doppler for cardiac applies optional) Function
“Color/Power/Directional Power Doppler Flow Imaging”

Probes Made by NDK JAPAN
Ultrasound probe isonic
iSonic®  Wide band multi-frequency,Imaging Processing ,Imaging optimization and Compound enhance technology,touch pad and keyboard,high quality images and sensitivity

Pulse Wave Doppler & HPRF” (CW Doppler for cardiac applies optional) Function
“Color/Power/Directional Power Doppler Flow Imaging”

Probes Made by NDK JAPAN
Ultrasound probe isonic
Read More

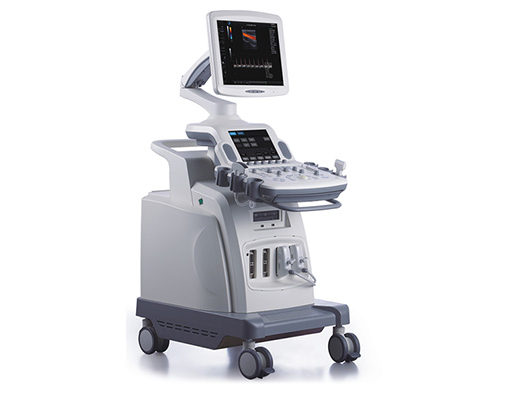

17" LCD, high brightness, high resolution, wide view angle
iSonic®  Wide band multi frequency ,Imaging Processing ,Imaging optimization
195 elements, ZIP260 connector
Hard Disk (500G),
Control panel (exclude touch pad)
Operating Mode:  2B, 4B, B/M, M, B/C, B/C/D, B/D, PW, velocity,
power (direction), histogram, Triplex/Duplex

Imaging Processing Technology
Imaging optimization technology
Compound enhance technology
Speckle reduction
Multi beam parallel processing technology
Color coding
Doppler frame correlation
Wall filter
Tissue Harmonic
File management
Hard disk storage
Cine loop
DVD-ROM
USB
RS232
DICOM 3.0
Intranet
Parallel printing port

Imaging Modes

Overview
B, Dual B, Quad B, M
Color, Dual Color
Simultaneous 2D/Color Compound
PW, Duplex/Triplex
CFM, PD, Directional PD, CD
Freehand 3D
4D
Panoramic

Measurements Specifications
Obstetrical Report
Amniotic Fluid Index (AFI)
BPD/OFD, FL/AC, FL/BPD and HC/AC ratio
Estimate Weight Of Fetus
Gestational Age
Expected Date Of Confinement (LMP/BBT)
Fetal Biophysical Score
Fetus Growth Curve

Gynecology
Uterus, Ovary, Follicle
Gynecology Report

Urology
Kidney, Bladder, Residual Urine Volume
Urology Report

Andrology
Prostate, Testis
Prostate Specific Antigen (PSA)
Prostate Specific Antigen Density (PSAD)
Andrology report

Orthopedic
Left and Right Hip Joint

Peripheral Vascular
Area Stenosis
Vessel Diameter Stenosis
Peripheral Vascular Report

Small Parts
Thyroid, Mammary Gland, Nodule
Small Parts Report

Multiple Births
Measurement Of Multiple Births

Cardiac
Heart Rate
Blood Flow Rate
Left Ventricle
Aorta
Mitral Valve
Ventricle (left/right)
Area Stenosis (% area Sten)
Vascular Diameter Stenosis (% Diam Sten)
Body Surface Area (BSA)

Comes with
Mobile trolley
Multi frequency convex probe
Multi frequency linear probe

Optional modules
CW Doppler and “Free Xros™ Imaging “(for cardiac applies) module
Smart3D module (for 3 dimensions with 2D standard convex probe)
“iScape View” module
DICOM 3.0 module

Optional probes
Micro-convex array Transvaginal probe
Micro-convex probe
Linear probe
Intdo rectal linear probe
Phased array probe 2P2 (for cardiac applies)

Optional Accessories
Footswitch by USB port
Biopsy guide for convex probe
Biopsy guide for micro-convex probe
Biopsy guide for linear probe
Biopsy guide for micro-convex TV probe
Biopsy guide for intrarectal linear probe


Software Specifications:

Languages
English, Russian, Spanish, Polish, Turkish, Vietnamese, Simplified Chinese

User Interface Cine Playback Multiple Arrows
Configurable Worksheets
Exam Review :Pictograms (Body Marks) System Setup Menu Programmable Annotations

Max Onscreen Measurements
                        Distance:       27
                        Area:              3

Measurement Tools
B-Mode
Distance:         Point to Point Angle:
Vector Angle Area/Perimeter:     Ellipse, Trace Volume Three – Axis
M-Mode Time Distance Heart Rate
Valve Velocity

Doppler-Mode
                        Velocity
                        Time
                        Heart Rate
                        Acceleration
Common Measurement: PS, ED, TAMAX, RI, PPG Trace:     PS, ED, TAMAX, RI, PPG

Imaging Modes

Overview

B, Dual B, Quad B, M Color, Dual Color
Simultaneous 2D/Color Compound
PW, Duplex/Triplex
CFM, PD, Directional PD, CD Freehand 3D
4D Panoramic

Combined Modes

Dual B, Quad B, B/M, B B/CB/C/PW

B-Mode

Maps:                              17
Focus Count:                  Max. 4
Gain:                               0~255
TGC:                               8
Sliders Dynamic Range: 0~150dB
Depth:                             Max. 30cm
Acoustic Power:             0 ~ (-15) dB
Chroma:                         0~7
Grayscale Levels:          256
Frame Rate:                   Max.100Hz
Max. Line Density:         512
Persistence/ Frame Average: Up to 7
Top/Bottom/Left/Right Reverse
Speckle Reduction

M-Mode

Maps:                                16
Chroma:                            16
Sweep Speed:                   3
Gain:                                  0~255
Distance:                           Point-to-Point
Max Steer Angle:              15°
Diameter Reduction:          Point-to-Point
Heart Rate/Time/Distance/Slope
Side-by-Side/Bottom

Color Mode

Gain:                                  0~255
Color Maps:                       0~6
Doppler Steer Angles:       5 Steps
PRF:                                  1.8 kHz~13.2 kHz
Wall Filter:                          0~3
Max. Steer Angle:              ±10°
Doppler Multi-Frequency:  2MHz~10MHz
Priority:                              0~250
Line Density Max:             256 Lines
Persistence/Frame Average: 0~7
Baseline/Invert/Color ROI/M-Mode

PW Mode

Gain:                                   0~255
Sweep Speed:                    5
Doppler Steer Angles:        5 Steps
Maps:                                  3
Max Steer Angle:               ±10° Spectrum Filter (Edge):     0~3
Audio:                                 0~255
Correction Angle:               80°/-80°
Doppler Multi-Frequency:  2MHz~10MHz
Chroma:                             0~7


Hardware Specifications:

LCD Monitor
Size (Diagonal):

15 inch

Transducers
4D Volume Probe
Frequency: Central 4.0 MHz
Contrast Ratio: Resolution: Brightness: Color Depth: Rotate Angle: Grey Levels:
800:1
1024×768 pixels
230 cd/m2
24bit
± 90°
256

Convex Array Probe
Frequency: Central 3.5 MHz Min. 2.0 MHz Max. 5.5 MHz
Pitch:                  0.516 mm
Radius:              60 mm

Min. 2.0 MHz

Max. 5.5 MHz

Made by NDK Japan

Touch Screen
Size (Diagonal):


10”

Linear Array Probe:

Contrast Ratio: Resolution: Brightness: Grey Levels: Input Signal: 600:1
800×600 pixels
250 cd/m2
64
DVI
Frequency: Central 7.5 MHz Min. 6.0 MHz Max. 12.0 MHz
Pitch:              0.352 mm
Radius:          N/A


Embedded Computer
CPU:     Intel E4300 (Minimum)
Hard Drive (Patient) Data:     ≥ 500 GB
Embedded Speakers Impedance:  4Ω
Power: 5 W
UPS (Optional)


Standard:

Mobile trolley
Multi frequency convex probe ...... 1Pcs
Multi frequency linear probe ........ 1Pcs
Power Cable  ............................... 1Pcs
Cleaning Cloth  ............................ 1Pcs

Options:

CW Doppler and “Free Xros™ Imaging “(for cardiac applies) module
Smart 3D module (for 3 dimensions with 2D standard convex probe)
“iScape View” module
DICOM 3.0 module
Foot switch by USB port

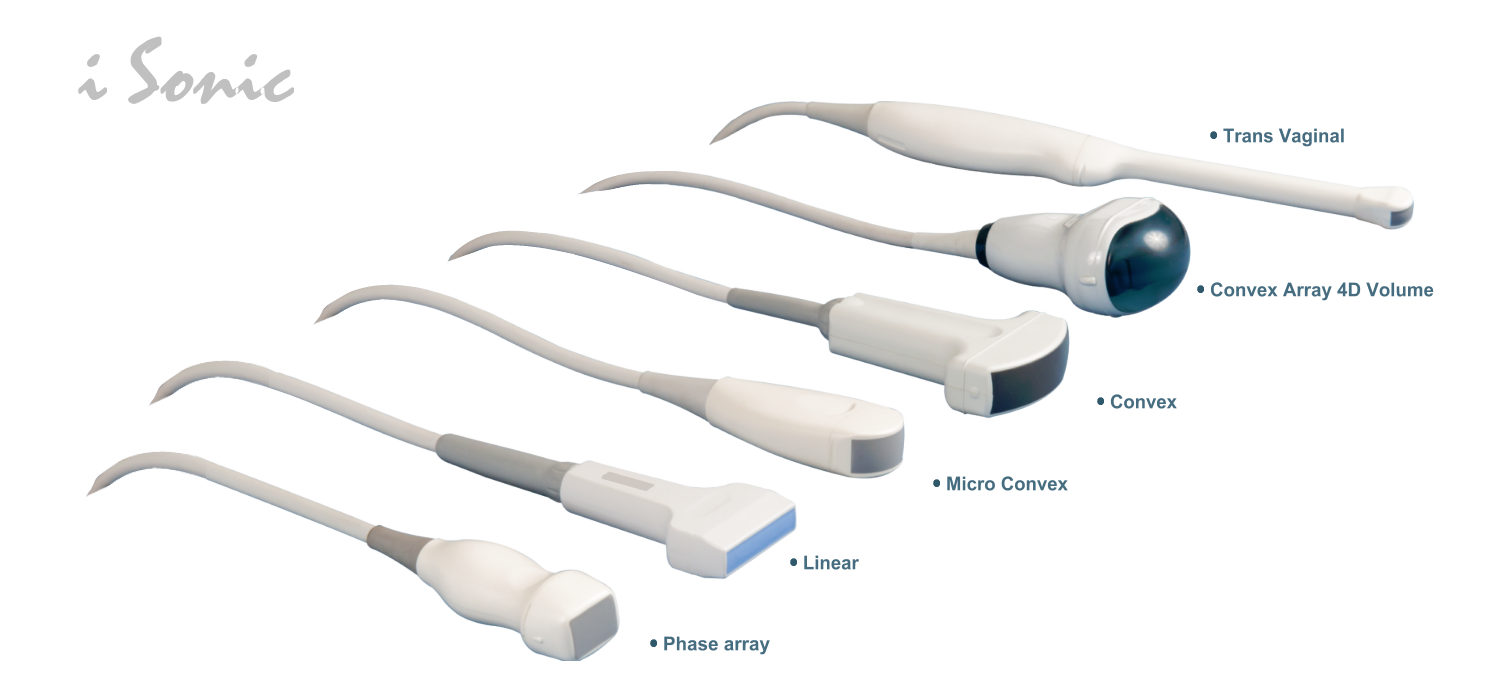

Probes:
Micro-convex array Transvaginal Probe
Micro-convex Probe
Linear Probe
Volume Probe
Indo rectal linear probe
Phased array probe 2P2 (for cardiac applies)

Ultrasound probe isonic

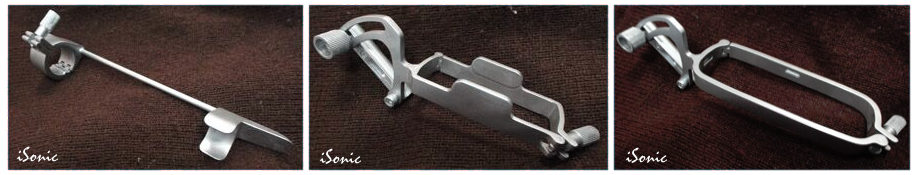

Biopsy guide:
Biopsy guide for convex probe
Biopsy guide for micro-convex probe
Biopsy guide for linear probe
Biopsy guide for micro-convex TV probe
Biopsy guide for intrarectal linear probe


iSonic®  reusable needle guide offers surgeons free angle for needle insertion.
A easy-to-learn quick-release allows easy detachment of the device from the transducer providing physicians increased flexibility during procedures.

Needle separable from guide.
3-5 years lifespan.
Autoclave sterilization, low temperature plasma disinfection, ethylene oxide gas disinfection.

Product Advantage
Angle Type: Free-Angle
Available Angle:Free angle


Product Features

    17" LCD, high brightness, high resolution, wide view angle
    iSonic®  Wide band multi frequency ,Imaging Processing ,Imaging optimization
    195 elements, ZIP260 connector
    Hard Disk (500G),
    Control panel (exclude touch pad)
    Operating Mode:  2B, 4B, B/M, M, B/C, B/C/D, B/D, PW, velocity,
    power (direction), histogram, Triplex/Duplex

    Imaging Processing Technology
    Imaging optimization technology
    Compound enhance technology
    Speckle reduction
    Multi beam parallel processing technology
    Color coding
    Doppler frame correlation
    Wall filter
    Tissue Harmonic
    File management
    Hard disk storage
    Cine loop
    DVD-ROM
    USB
    RS232
    DICOM 3.0
    Intranet
    Parallel printing port

    Imaging Modes

    Overview
    B, Dual B, Quad B, M
    Color, Dual Color
    Simultaneous 2D/Color Compound
    PW, Duplex/Triplex
    CFM, PD, Directional PD, CD
    Freehand 3D
    4D
    Panoramic

    Measurements Specifications
    Obstetrical Report
    Amniotic Fluid Index (AFI)
    BPD/OFD, FL/AC, FL/BPD and HC/AC ratio
    Estimate Weight Of Fetus
    Gestational Age
    Expected Date Of Confinement (LMP/BBT)
    Fetal Biophysical Score
    Fetus Growth Curve

    Gynecology
    Uterus, Ovary, Follicle
    Gynecology Report

    Urology
    Kidney, Bladder, Residual Urine Volume
    Urology Report

    Andrology
    Prostate, Testis
    Prostate Specific Antigen (PSA)
    Prostate Specific Antigen Density (PSAD)
    Andrology report

    Orthopedic
    Left and Right Hip Joint

    Peripheral Vascular
    Area Stenosis
    Vessel Diameter Stenosis
    Peripheral Vascular Report

    Small Parts
    Thyroid, Mammary Gland, Nodule
    Small Parts Report

    Multiple Births
    Measurement Of Multiple Births

    Cardiac
    Heart Rate
    Blood Flow Rate
    Left Ventricle
    Aorta
    Mitral Valve
    Ventricle (left/right)
    Area Stenosis (% area Sten)
    Vascular Diameter Stenosis (% Diam Sten)
    Body Surface Area (BSA)

    Comes with
    Mobile trolley
    Multi frequency convex probe
    Multi frequency linear probe

    Optional modules
    CW Doppler and “Free Xros™ Imaging “(for cardiac applies) module
    Smart3D module (for 3 dimensions with 2D standard convex probe)
    “iScape View” module
    DICOM 3.0 module

    Optional probes
    Micro-convex array Transvaginal probe
    Micro-convex probe
    Linear probe
    Intdo rectal linear probe
    Phased array probe 2P2 (for cardiac applies)

    Optional Accessories
    Footswitch by USB port
    Biopsy guide for convex probe
    Biopsy guide for micro-convex probe
    Biopsy guide for linear probe
    Biopsy guide for micro-convex TV probe
    Biopsy guide for intrarectal linear probe


Product Specifications

    Software Specifications:

    Languages
    English, Russian, Spanish, Polish, Turkish, Vietnamese, Simplified Chinese

    User Interface Cine Playback Multiple Arrows
    Configurable Worksheets
    Exam Review :Pictograms (Body Marks) System Setup Menu Programmable Annotations

    Max Onscreen Measurements
                            Distance:       27
                            Area:              3

    Measurement Tools
    B-Mode
    Distance:         Point to Point Angle:
    Vector Angle Area/Perimeter:     Ellipse, Trace Volume Three – Axis
    M-Mode Time Distance Heart Rate
    Valve Velocity

    Doppler-Mode
                            Velocity
                            Time
                            Heart Rate
                            Acceleration
    Common Measurement: PS, ED, TAMAX, RI, PPG Trace:     PS, ED, TAMAX, RI, PPG

    Imaging Modes

    Overview

    B, Dual B, Quad B, M Color, Dual Color
    Simultaneous 2D/Color Compound
    PW, Duplex/Triplex
    CFM, PD, Directional PD, CD Freehand 3D
    4D Panoramic

    Combined Modes

    Dual B, Quad B, B/M, B B/CB/C/PW

    B-Mode

    Maps:                              17
    Focus Count:                  Max. 4
    Gain:                               0~255
    TGC:                               8
    Sliders Dynamic Range: 0~150dB
    Depth:                             Max. 30cm
    Acoustic Power:             0 ~ (-15) dB
    Chroma:                         0~7
    Grayscale Levels:          256
    Frame Rate:                   Max.100Hz
    Max. Line Density:         512
    Persistence/ Frame Average: Up to 7
    Top/Bottom/Left/Right Reverse
    Speckle Reduction

    M-Mode

    Maps:                                16
    Chroma:                            16
    Sweep Speed:                   3
    Gain:                                  0~255
    Distance:                           Point-to-Point
    Max Steer Angle:              15°
    Diameter Reduction:          Point-to-Point
    Heart Rate/Time/Distance/Slope
    Side-by-Side/Bottom

    Color Mode

    Gain:                                  0~255
    Color Maps:                       0~6
    Doppler Steer Angles:       5 Steps
    PRF:                                  1.8 kHz~13.2 kHz
    Wall Filter:                          0~3
    Max. Steer Angle:              ±10°
    Doppler Multi-Frequency:  2MHz~10MHz
    Priority:                              0~250
    Line Density Max:             256 Lines
    Persistence/Frame Average: 0~7
    Baseline/Invert/Color ROI/M-Mode

    PW Mode

    Gain:                                   0~255
    Sweep Speed:                    5
    Doppler Steer Angles:        5 Steps
    Maps:                                  3
    Max Steer Angle:               ±10° Spectrum Filter (Edge):     0~3
    Audio:                                 0~255
    Correction Angle:               80°/-80°
    Doppler Multi-Frequency:  2MHz~10MHz
    Chroma:                             0~7


    Hardware Specifications:

    LCD Monitor
    Size (Diagonal):

    15 inch

    Transducers
    4D Volume Probe
    Frequency: Central 4.0 MHz
    Contrast Ratio: Resolution: Brightness: Color Depth: Rotate Angle: Grey Levels:
    800:1
    1024×768 pixels
    230 cd/m2
    24bit
    ± 90°
    256

    Convex Array Probe
    Frequency: Central 3.5 MHz Min. 2.0 MHz Max. 5.5 MHz
    Pitch:                  0.516 mm
    Radius:              60 mm

    Min. 2.0 MHz

    Max. 5.5 MHz

    Made by NDK Japan

    Touch Screen
    Size (Diagonal):


    10”

    Linear Array Probe:

    Contrast Ratio: Resolution: Brightness: Grey Levels: Input Signal: 600:1
    800×600 pixels
    250 cd/m2
    64
    DVI
    Frequency: Central 7.5 MHz Min. 6.0 MHz Max. 12.0 MHz
    Pitch:              0.352 mm
    Radius:          N/A


    Embedded Computer
    CPU:     Intel E4300 (Minimum)
    Hard Drive (Patient) Data:     ≥ 500 GB
    Embedded Speakers Impedance:  4Ω
    Power: 5 W
    UPS (Optional)


Related Accessories

    Standard:

    Mobile trolley
    Multi frequency convex probe ...... 1Pcs
    Multi frequency linear probe ........ 1Pcs
    Power Cable  ............................... 1Pcs
    Cleaning Cloth  ............................ 1Pcs

    Options:

    CW Doppler and “Free Xros™ Imaging “(for cardiac applies) module
    Smart 3D module (for 3 dimensions with 2D standard convex probe)
    “iScape View” module
    DICOM 3.0 module
    Foot switch by USB port

    Probes:
    Micro-convex array Transvaginal Probe
    Micro-convex Probe
    Linear Probe
    Volume Probe
    Indo rectal linear probe
    Phased array probe 2P2 (for cardiac applies)

    Ultrasound probe isonic


    Biopsy guide:
    Biopsy guide for convex probe
    Biopsy guide for micro-convex probe
    Biopsy guide for linear probe
    Biopsy guide for micro-convex TV probe
    Biopsy guide for intrarectal linear probe


    iSonic®  reusable needle guide offers surgeons free angle for needle insertion.
    A easy-to-learn quick-release allows easy detachment of the device from the transducer providing physicians increased flexibility during procedures.

    Needle separable from guide.
    3-5 years lifespan.
    Autoclave sterilization, low temperature plasma disinfection, ethylene oxide gas disinfection.

    Product Advantage
    Angle Type: Free-Angle
    Available Angle:Free angle


Related items

MEDITECH LIBRARY
