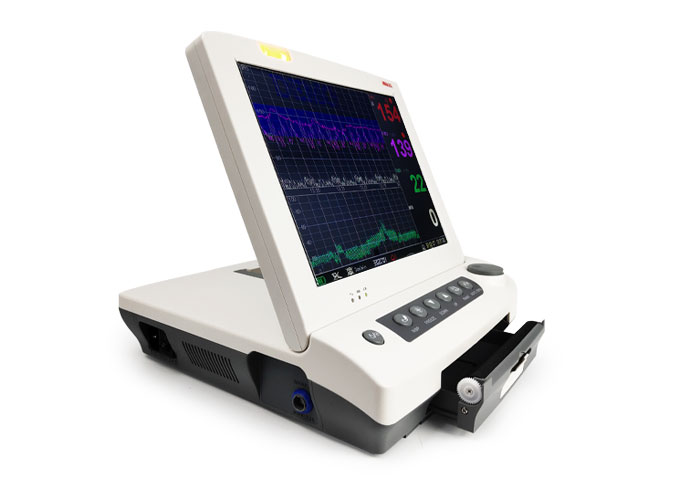

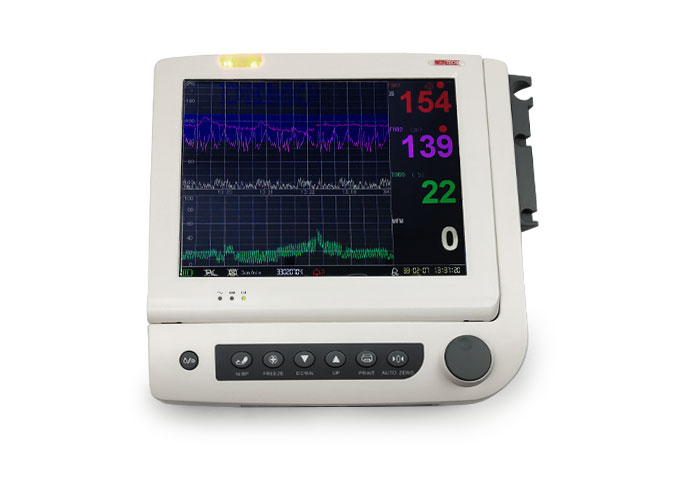

MD901F Advanced fetal monitor with large color screen
Light dexterous appearance, tops horizontally and walls can be hoisted

Product Features

    12.1 "screen color LCD display, rotatable screen to 75°
    Display of the patient data and curve clearly
    FHR 120 BPM~160 BPM normal range label
    Manual records fetal movement
    Sound and color alarm for high and low fetal heart rate
    Continuous 24-hour real-time monitoring function
    Continuous 12-hour patient curve and data storage , playback and print
    With picture freeze function
    Single, Twins Monitoring optional
    9 crystal board band pulsed wave transducer
    Extra-long life, high-resolution built-in thermal recorder

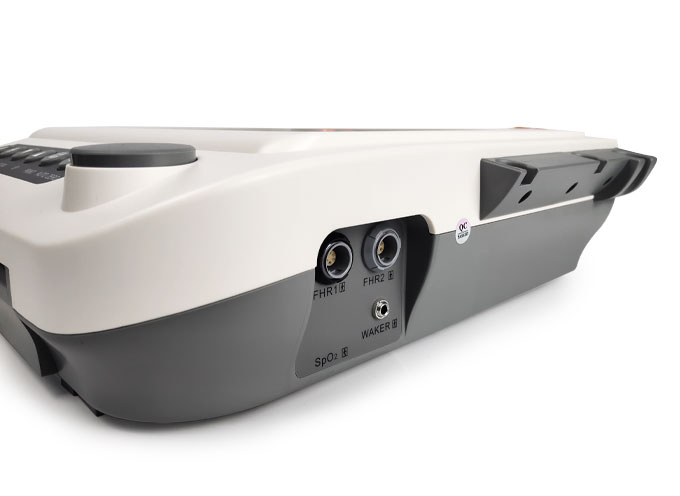

    Built-in communication port, can be connected with central monitoring system.

    Options:
    Multiparameter Patient Monitor Module
    (ECG, SpO2, RESP, PR, NIBP).

Product Specifications

    Display
    Dimensions: 12.1 inch display, folding 75 degree

    Content:
    Bed No..............................................
    Pregnancy weeks..............................
    Age....................................................
    Paper speed......................................
    Date...................................................
    Time...................................................
    Volume...............................................
    Alarm status.......................................
    Transducer connection status............
    Recorder status..................................
    FHR data and wave..........................
    Contraction data and wave...............
    Fetal move times and mark...............

    Ultrasound probe:
    Nominal Frequency: 1.0 MHz
    Work Frequency: 1.0 MHz±10 %
    Negative peak sound pressure : p_<1 MPa
    Output beam intensity : Iob<20 mW/cm2
    The peak time space peak intensity: Ispta<100 mW/cm2
    The average time space peak intensity: Isata<10 mW/cm2
    FHR Rang: 50 BPM~240 BPM
    Resolution: 1 BPM
    Accuracy : ±2 BPM

    FHR
    Ultrasound Frequency: 2MHz
    Range: 50 ~ 210 bpm
    Resolution: 1bmp
    Accuracy: ±2bmp

    TOCO
    Range: 0 ~ 100%
    Resolution: 1%
    Non-linear Error: <=±8%
    Zero control: Manual

    FETAL MOVEMENT:
    For the manual button (the operation of pregnant women), there will be a mark display in the bottom area of FHR wave display section.

    SPO2 (Options)
    Measurement Range: 0 ~ 100%
    Resolution: 1%
    Accuracy: ±2%(70%~100%, Adult/Pediatric, non-motion)
    ±3%(70%~100%, Neonate, non-motion)0% ~ 69% unspecified
    Alarm Range: 0% ~ 100%
    Refreshing Rate: 1s

    Pulse Rate (Options)
    Measurement Range: 25 ~ 250 bpm
    Resolution: 1bpm
    Accuracy: ±3 bpm (non-motion)
    Alarm Range: 25 ~ 250 bmp
    Refreshing Rate: 1s

    ECG (Options)
    Lead mode: 3-lead or 5-lead
    Lead selection: I, II, III, AVR, AVL, AVF, V
    HR range: 15 ~ 300 bpm
    ECG Waveform: 2 channels
    Accuracy: ±2bpm or ±2%, which is greater
    S-T segment detection range: -2.0mv ~ +2.0mv
    Arrhythmia analysis: 13 kinds of arrhythmia
    Alarm Range: 15 ~ 300 bpm

    NIBP (Options)
    Method: Oscillometry
    Mode: Manual/Auto/Continuous
    Measurement Range: 25 ~ 260mmHg
    Auto Measure Interval: 5, 10, 15, 30, 45, 60, 90 minutes
    Resolution: 1mmHg
    Overpressure Protection: 300mmHg
    Alarm range: 25 ~260mmHg

    Print:
    Record Paper two-double type Z
    Print Width: 112 mm
    Valid Print Width: 104 mm
    Paper output speed: 1 cm/min、2 cm/min、3 cm/min(optional)
    Data Precision: ±5 %(X Roll),±1 %(Y Roll)
    Record Content: hospital , bed No. ,name, pregnancy weeks, patient No., paper speed, date,    time , FHR data and wave, Contraction data and wave, Fetal move times and mark etc.

    Safety :
    Anti-shock types: Facilities I, no internal power supply
    Anti-electric Shock Degree: B
    Working Voltage: AC 100 V~240 V
    Frequency: 50 Hz/60 Hz    P<60 VA
    Fuse: T1.6AL250VDisplay

    Options:
    Ultrasound Transducer

    Physical Characteristics
     Size: 320 mm (length) × 260 mm (width) × 80 mm (height)
     Weight: about 3 kg


Related Accessories

    Standard:

    Ultrasonic Transducer ..... 1Pcs
    TOCO Transducer  .......... 1Pcs
    Switch Remote  ............... 1Pcs
    Abdomen belt  ................. 1Pcs
    Z Thermal Paper     ......... 1Pcs
    Ground Cable   ................ 1Pcs
    Ground Cable   ................ 1Pcs
    Fuse  ............................... 2Pcs
    Cleaning Cloth  ................ 1Pcs

    Options:

    ECG Cable (3 Leads)
    ECG Alligator Clips (Metal)
    SpO2 Cable (Adult)
    SpO2 Cable (New born)
    SpO2 Cable (Adult finger clip)
    SpO2 Cable (Child finger clip)
    SpO2 Cable (multi-site Y type)
    SpO2 probe (Soft tip)
    SpO2 External Cable
    NIBP Cuff (infant 8 - 14 cm 5/Bag)
    NIBP Cuff (Child 13 - 20 cm 5/Bag)
    NIBP Cuff (Small Adult 18 - 26 cm 5/Bag)
    NIBP Cuff (Adult 26 - 35 cm 5/Bag)
    NIBP Cuff (Adult Long 29 - 38 cm 5/Bag)
    NIBP Cuff (Large Adult 32 - 42 cm 5/Bag)
    NIBP Cuff (Large Adult Long 35 - 44 cm 5/Bag)
    NIBP Cuff (Thigh 42 - 50 cm)
    NIBP Tube 150cm
    Paper Role
    Thermal printer
    Patient Monitor Wall mounts (3 Models)
    Patient Monitor Trolley (5 Models)
