Product Features

Defibrillator type   Manual Synchronized A synchronized
Output waveform        Monophonic technology
                                    Biphasic technology (optional)
Energy accuracy   ∠+1%
Energy selection  0.3.5.7.10.20.30.50.100.200.300.360 joule(nominal at a resistance of 50)
Charging time       Maximum 8 seconds to 360 Joules

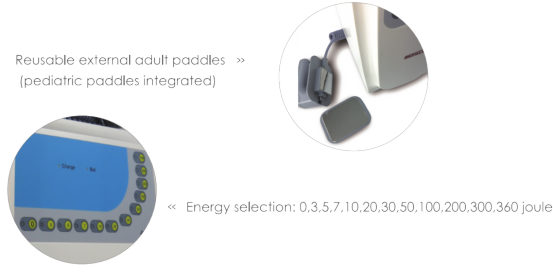

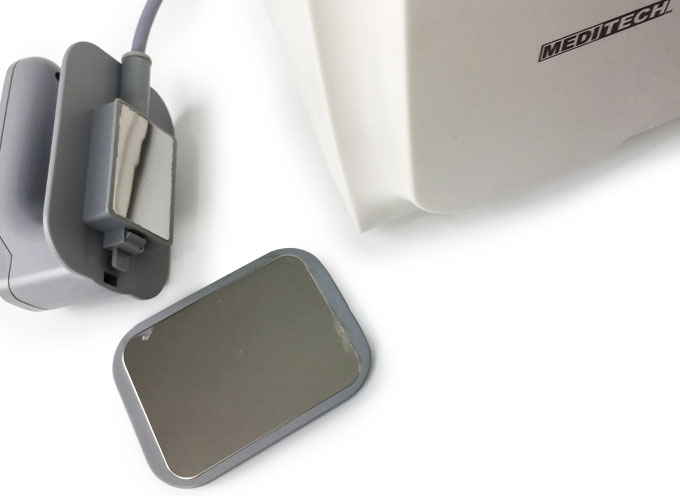

Standard Adult/Pediatric Paddles   Reusable external adult paddles(pediatric paddles integrated)
Come with two battery for longer capacity



Product Specifications

Defibrillator
Defibrillator type                    Manual Synchronized Asynchronized
Out put waveform                  Monophasic technology
Energy accuracy                   <+1%
Energy selection                    0.3.5.7.10.20.30.50.100.200.300.360 joule (nominal at a resistance of 50)
Charging time                        Maximum 8 seconds to 360 Joules

Standard Adult/Pediatric Paddles
 Reusable external adult paddles (pediatric paddles integrated)

Power requirements
AC Power supply                       110V 60 Hz /220V50 Hz
Vehicle Voltage                          DC 12V

Internal Battery Backup
Battery type                              Rechargeable lead-acid battery/ lithium battery(optional)
Charging time                          Time-Minimum of 4 hours for full charging
Battery charging                       During AC Power Supply operation of the device.
Charging /Low Battery             Indication  Red LED
Battery Capacity                      100% of the battery will provide 120 mins of monitoring and 30 discharges at 360 joules.


Related Accessories

Standard:

Ground Wire    ................. 1Pcs
Battery   ........................... 2Pcs
Power cable  ................... 1Pcs
Fuse  ............................... 2Pcs
Cleaning Cloth  ................ 1Pcs


Options:


Defibrillator Wall mounts (3 Models)
Defibrillator Trolley (5 Models)
Defibrillator carry bag
