Oxima® 3

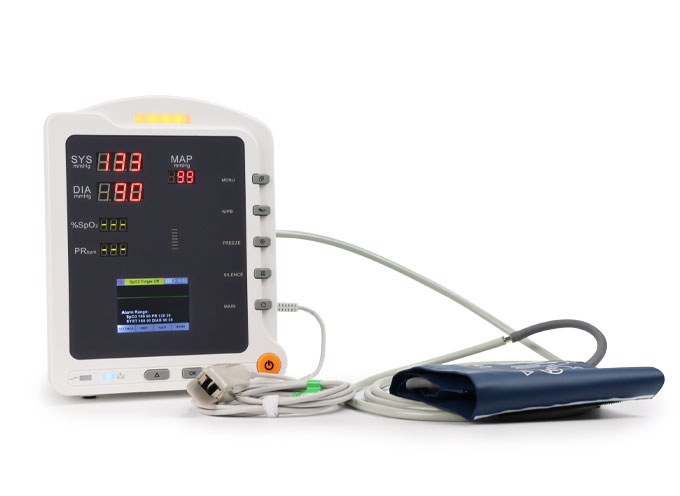

Oxima® 3 Light weight  vital signs patient Monitor

It can be applied in the hospital's operation room ICU clinic section office
Out-patient department sickroom and emergency treatment.
Oxima® 3 Light weight  vital signs patient Monitor

It can be applied in the hospital's operation room ICU clinic section office
Out-patient department sickroom and emergency treatment.
Read More
Efficient performance patient monitor
Easy to use
Four parameters: NIBP. SpO2. Pulse Rate.
Suitable for adult pediatric and neonatal
Battery capacity indicator and prompt when battery low

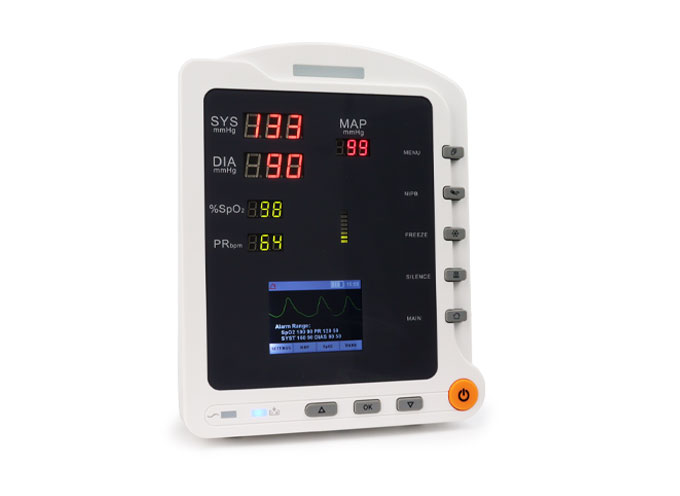

Large screen : SpO2 PR are shown on LED screen Pleth waveform is displayed on 2.8" color screen in real time
24 hours or AC power and Built-in rechargeable Li-ion battery up to 6 hour running time
Storage/Review trend data up to 3888 groups data save time interval settable
Automatic shutdown for power saving shutdown time interval settable
Audio and visual alarm when parameters exceeded and sensor-off

Options
Thermal Printer
Oxima® 3 Vital signs monitor three parameters: NIBP,SpO2 and TEMP

NIBP:
Measurement method: Oscillometric
Range: Adult: 30mmHg~255mmHg Pediatric: 30mmHg~160mmHg
Measurement unite: MmHg/kPa selectable
Measurement mode: Manual Auto STAT
Measurement Type: SYS DIA MAP
Measurement interval in AUTO mode: 1 2 3 5 10 15 20 30 45 60Min
Measuring period in STAT mode: 5 Min
Resolution: 1mmHg
Over-pressure protection: Adult: 300mmHg Pediatric: 220mmHg

SpO2:
Range: 0 -100%
Resolution: 1 %
Accuracy: 2% (90~99%) 3% (70~89%) unspecified (< 70%)

PR:
Range: 30bpm~250bpm
Resolution: 1bpm
Accuracy: 2bpm

Power Requirements:
AC power adaptor
Input: AC 100~240V 50/60Hz 0.7A
Output: 5V 2.5A
Internal battery
Type: 2.8A build-in Li-ion rechargeable battery
Operating Time: 6 hours of stand-by time with a full battery.
Recharge time: 8 hours

Oevice dimension: 210mm × 188mm × 107mm
Net Weight: 1000g


Product Features

    Efficient performance patient monitor
    Easy to use
    Four parameters: NIBP. SpO2. Pulse Rate.
    Suitable for adult pediatric and neonatal
    Battery capacity indicator and prompt when battery low
    Large screen : SpO2 PR are shown on LED screen Pleth waveform is displayed on 2.8" color screen in real time
    24 hours or AC power and Built-in rechargeable Li-ion battery up to 6 hour running time
    Storage/Review trend data up to 3888 groups data save time interval settable
    Automatic shutdown for power saving shutdown time interval settable
    Audio and visual alarm when parameters exceeded and sensor-off

    Options
    Thermal Printer

Product Specifications

    Oxima® 3 Vital signs monitor three parameters: NIBP,SpO2 and TEMP

    NIBP:
    Measurement method: Oscillometric
    Range: Adult: 30mmHg~255mmHg Pediatric: 30mmHg~160mmHg
    Measurement unite: MmHg/kPa selectable
    Measurement mode: Manual Auto STAT
    Measurement Type: SYS DIA MAP
    Measurement interval in AUTO mode: 1 2 3 5 10 15 20 30 45 60Min
    Measuring period in STAT mode: 5 Min
    Resolution: 1mmHg
    Over-pressure protection: Adult: 300mmHg Pediatric: 220mmHg

    SpO2:
    Range: 0 -100%
    Resolution: 1 %
    Accuracy: 2% (90~99%) 3% (70~89%) unspecified (< 70%)

    PR:
    Range: 30bpm~250bpm
    Resolution: 1bpm
    Accuracy: 2bpm

    Power Requirements:
    AC power adaptor
    Input: AC 100~240V 50/60Hz 0.7A
    Output: 5V 2.5A
    Internal battery
    Type: 2.8A build-in Li-ion rechargeable battery
    Operating Time: 6 hours of stand-by time with a full battery.
    Recharge time: 8 hours

    Oevice dimension: 210mm × 188mm × 107mm
    Net Weight: 1000g
