Dolphi® pro

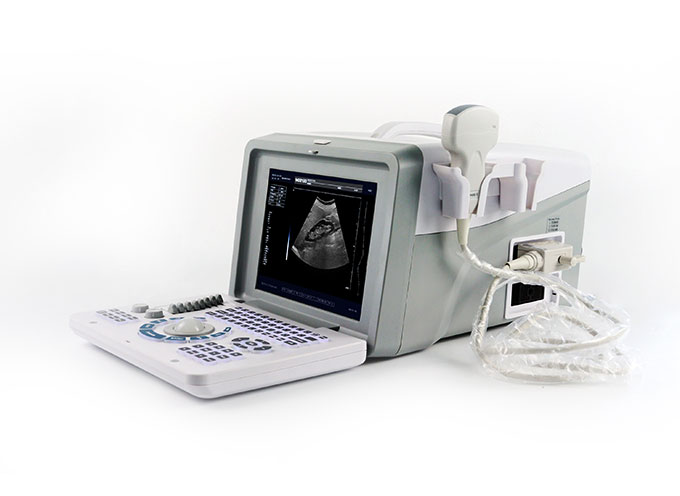

Dolphi® pro Portable B/W Ultrasound Scanner

High Cost-effective
Crystal-clear /image
Multi-frequency Probes
Digital /image Storage

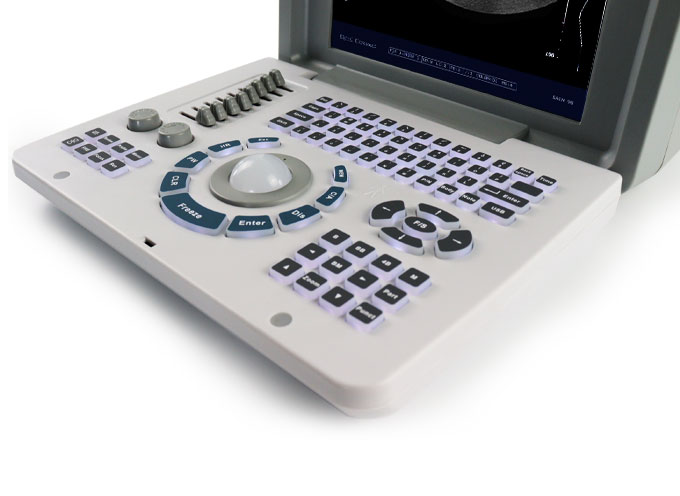

8 TGC controls
Cineloop
B.2B.B/M.4B display
USB port (option)

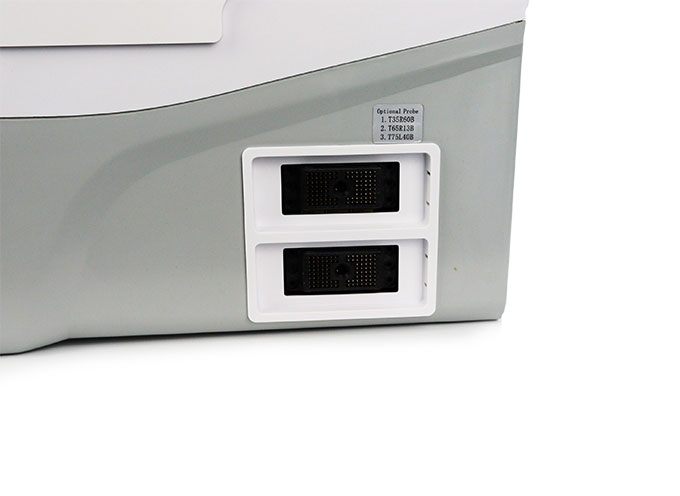

Two probe sockets
10 inch screen
SVGA and PAL video output
Light key
Dolphi® pro Portable B/W Ultrasound Scanner

High Cost-effective
Crystal-clear /image
Multi-frequency Probes
Digital /image Storage
8 TGC controls
Cineloop
B.2B.B/M.4B display
USB port (option)
Two probe sockets
10 inch screen
SVGA and PAL video output
Light key
Read More

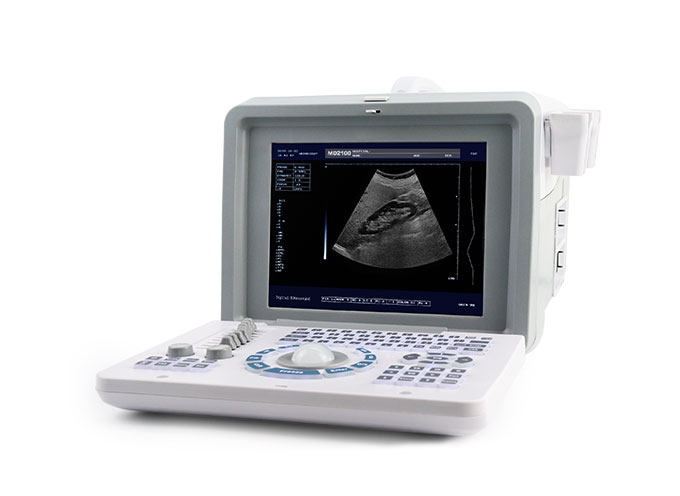

Portable 2D B/W Ultrasound scanner
10 inch CRT Screen with clear image quality
Advanced transducer technology
Digital Beam Forming
Multiple imaging modes
Patented innovative design
Real-time dynamic aperture
2 USB port upgrated and expandable printer function
SVGA video output and PAL video output easy connect printer

  • Monitor: 10 inch SVGA HR display. Grey scale: 256 levels.
  • Display mode: B, B/B, 4B, B+M, and M
  • Magnification: ×0.8, ×1.0, ×1.2 (Depth hoist display), and × 1.5,×1 .8, ×2.0 (Depth hoist display)
  • Dynamic range: 64~96dB adjustable
  • Focusing: Four sections of dynamic electronic focusing may be elected.
  • Pre-processes: changeable aperture, dynamic changes of the marks, dynamic filter and edge enhancement, etc.
  • Pro-processes: 8 kind of γadjustments,16 kinds of color process, line correlation, frame correlation and linear interpolation, etc.
  • Frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/6.5MHz/7MHz(Matching 6.5MHZ cavity probe and 7 MHz High-frequency linear array probe).
  • Calculation: distance, perimeter, area, heart rate, pregnancy week (BPD, GS, CRL, FL, AC) and anticipated delivery date.
  • Note: name, serial numbers of case history, gender, age, 16 body marks (with probe), full-screen character, real-time clock
  • Puncture guide: The puncture guide line can be displayed under B mode.
  • Gain control: The total gain, near field and far field can be adjusted successively.
  • Image polarity: left/right, black/white and up/down reverse.
  • Fractionated gain: 2 time of enlargements
  • Movie memory: 256 pictures can be memorized successively when the real-time is displayed.
  • Image memory: 128 pictures Permanent storage.
  • Image review: /images can be reviewed successively and checked one by one.

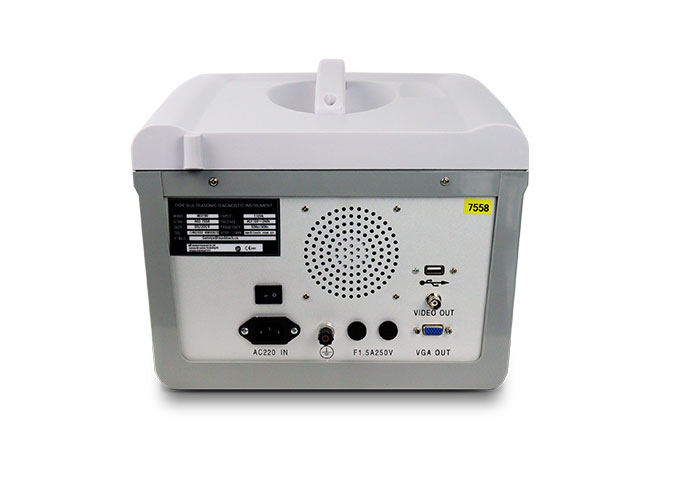

  • Output interface: 2 groups of SVGA video output may mate with SVGA color monitor. And 2 groups of PAL video output may mate with PAL monitor, video /image recording instrument and /image workshop, etc. 1 group of USB Connection (Optional).

Main Technical Specifications
Probe: 80Array element R60
Probe frequency: 3.5MHz
Scanning depth: ≥180mm
Lateral resolution: ≤2mm(depth≤80mm), ≤3mm(80< depth≤130mm)
Axial: ≤1mm(depth≤80mm), ≤2mm(80< depth≤130mm)
Dead zone: ≤3 mm。
Geometry position precision: lateral≤5%, axial≤5%
Monitor: 10 inch SVGA high resolution monitor(may choose PAL monitor)
Frames cine loops:256
Power supply scope: AC 220V±22V  50Hz
Input: ≤ 300VA
Successive working hours:≥8h
G/W: 10KGs
N/W: 7KGs
Packing size: 480x380x410mm



Standard:

Multi frequency convex probe ...... 1Pcs
Power Cable  ............................... 1Pcs
Cleaning Cloth  ............................ 1Pcs

Options:

7.5MHz high-frequency linear array probe
6.5MHz intra-cavity (trans-vaginal) probe
7.5MHz rectal probe
3.5MHz micro-convex probe
B/W Laser printer
Footswitch
Battery
Trolley
Ultrasonic work-station

Product Features

    Portable 2D B/W Ultrasound scanner
    10 inch CRT Screen with clear image quality
    Advanced transducer technology
    Digital Beam Forming
    Multiple imaging modes
    Patented innovative design
    Real-time dynamic aperture
    2 USB port upgrated and expandable printer function
    SVGA video output and PAL video output easy connect printer


Product Specifications

    • Monitor: 10 inch SVGA HR display. Grey scale: 256 levels.
    • Display mode: B, B/B, 4B, B+M, and M
    • Magnification: ×0.8, ×1.0, ×1.2 (Depth hoist display), and × 1.5,×1 .8, ×2.0 (Depth hoist display)
    • Dynamic range: 64~96dB adjustable
    • Focusing: Four sections of dynamic electronic focusing may be elected.
    • Pre-processes: changeable aperture, dynamic changes of the marks, dynamic filter and edge enhancement, etc.
    • Pro-processes: 8 kind of γadjustments,16 kinds of color process, line correlation, frame correlation and linear interpolation, etc.
    • Frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/6.5MHz/7MHz(Matching 6.5MHZ cavity probe and 7 MHz High-frequency linear array probe).
    • Calculation: distance, perimeter, area, heart rate, pregnancy week (BPD, GS, CRL, FL, AC) and anticipated delivery date.
    • Note: name, serial numbers of case history, gender, age, 16 body marks (with probe), full-screen character, real-time clock
    • Puncture guide: The puncture guide line can be displayed under B mode.
    • Gain control: The total gain, near field and far field can be adjusted successively.
    • Image polarity: left/right, black/white and up/down reverse.
    • Fractionated gain: 2 time of enlargements
    • Movie memory: 256 pictures can be memorized successively when the real-time is displayed.
    • Image memory: 128 pictures Permanent storage.
    • Image review: /images can be reviewed successively and checked one by one.
    • Output interface: 2 groups of SVGA video output may mate with SVGA color monitor. And 2 groups of PAL video output may mate with PAL monitor, video /image recording instrument and /image workshop, etc. 1 group of USB Connection (Optional).

    Main Technical Specifications
    Probe: 80Array element R60
    Probe frequency: 3.5MHz
    Scanning depth: ≥180mm
    Lateral resolution: ≤2mm(depth≤80mm), ≤3mm(80< depth≤130mm)
    Axial: ≤1mm(depth≤80mm), ≤2mm(80< depth≤130mm)
    Dead zone: ≤3 mm。
    Geometry position precision: lateral≤5%, axial≤5%
    Monitor: 10 inch SVGA high resolution monitor(may choose PAL monitor)
    Frames cine loops:256
    Power supply scope: AC 220V±22V  50Hz
    Input: ≤ 300VA
    Successive working hours:≥8h
    G/W: 10KGs
    N/W: 7KGs
    Packing size: 480x380x410mm



Related Accessories

    Standard:

    Multi frequency convex probe ...... 1Pcs
    Power Cable  ............................... 1Pcs
    Cleaning Cloth  ............................ 1Pcs

    Options:

    7.5MHz high-frequency linear array probe
    6.5MHz intra-cavity (trans-vaginal) probe
    7.5MHz rectal probe
    3.5MHz micro-convex probe
    B/W Laser printer
    Footswitch
    Battery
    Trolley
    Ultrasonic work-station
