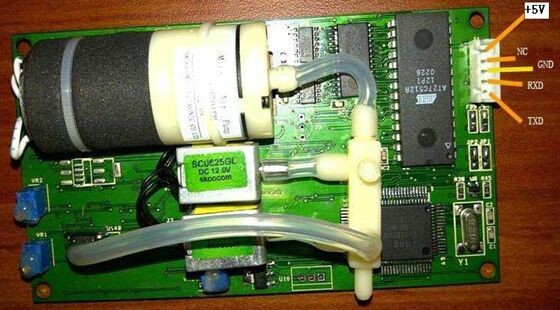

About MD IBP2 connection

Pin 1 Power supply : + 5VDC

Pin 2 : NC

Pin 3 : GND

Pin 4 : RXD

Pin 5 : TXD

and the board's socket is male and it will need need a female plunger

it is 2.54 * 5P
