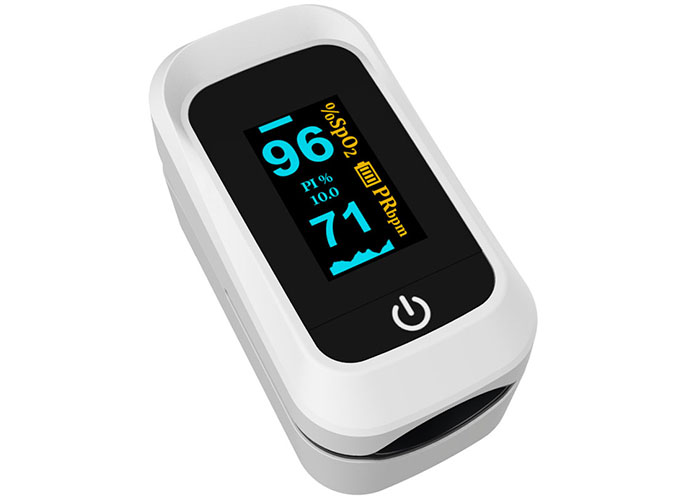

Product Features

Small in size, and easy to carry
Color OLED monitor, 4 different display modes
Pulse histogram and 4 kinds Spo2 wave display
Easy to use & high accuracy and repetition
Low voltage alarm display
Pulse oximeter perfusion index (PI)
Auto power-off after 20 seconds without signal
Runs on standard AAA batteries and continuous working time is 30 hours
Light weight of 55g, batteries included
Alarm setting: (SpO2   Hi/Lo)   (PR     Hi/Lo)

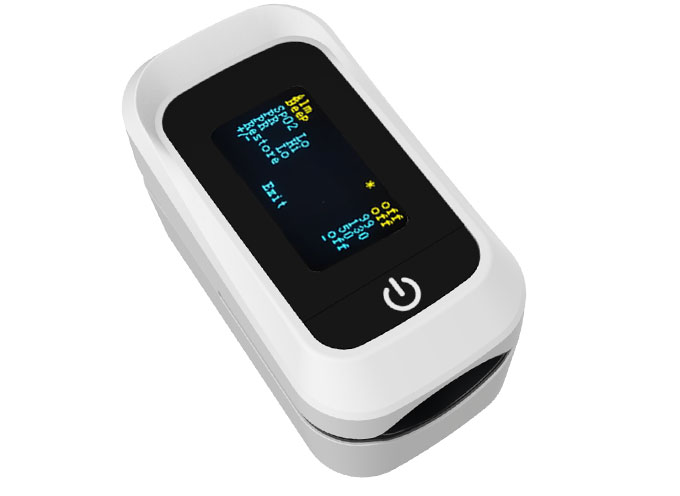

Screen 1
Sounds Setup: To go to the other menu
SpO2 Alm Hi:   Set hi levels of oxygen percentage
SpO2 Alm Lo:  Set low levels of oxygen percentage
PR Alm Hi:  Set high levels of pulse rate
PR Alm Lo:  Set low levels of pulse rate Switch
+/- ：           Between going higher or lower
Exit ：         To exit the menu

Screen 2
Alm：        To switch the alarm on or off
Beep：      To switch the pulse rate alarm on or off
Restore ： To restore back to factory settings
Exit：        To exit the menu

Product Specifications

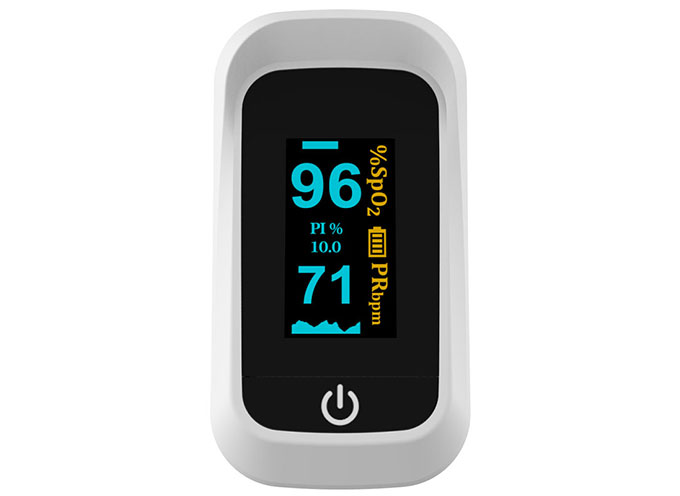

Display
OLED display
4 display mode
Parameters: SpO2, PR, Pleth bar.
Alarm Settings: Information &Low Battery

Patient Range
Adult and Pediatric

SpO2
Range 0%-99%
Resolution 1%
Accuracy ±2% in stage of 70 % ,0%-69%: unspecified
Method: Dual wavelength LED

Heart (Pulse) Rate
Range: 30-240 bpm
Resolution: 1bpm Accuracy, ±2bpm or ±2%

Measurement of PI

Environmental
Operating Temperature : 5℃-40℃
Storage Temperature: -10℃ - 40℃
Operating Humidity: 15%RH - 95%RH
Storage Humidity: 10%RH - 95%RH

Classification
Type of protection: internally powered equipment
Safety:  IEC Standard 61601-1-1

Mechanical
Size:   58(L) × 32(W) × 30(H) mm
Weight : 50g (including 2 batteries)

Battery 2 AAA size 1.5V Alkaline Batteries or 2 AAA 1.5V rechargeable batteries

Operation time
minimum 40 hours for normal Operation


Related Accessories

Standards:

Hang rope   ...................... 1Pcs
AAA Battery  .................... 1Pcs

Options:

Silicon Case
Nylon Case
Hard Case
