MD-IBP2 NIBP Module
MD-IBP2 Digital NIBP module
Small in size, simple, excellent reliability and ease of installation clinical monitoring of the accuracy;
Excellent reliability and accuracy of clinical monitoring

Meditech NIBP Pump low noise ,low energy consumption,also it environmental,the detail information are as follow: more Details:  Air pump fore Blood pressure

MD-IBP2 Digital NIBP module
Small in size, simple, excellent reliability and ease of installation clinical monitoring of the accuracy;
Excellent reliability and accuracy of clinical monitoring

Meditech NIBP Pump low noise ,low energy consumption,also it environmental,the detail information are as follow: more Details:  Air pump fore Blood pressure

Read More
The latest digital signal processing technology to achieve anti-noise and software algorithms anti-interference by moving arm;
Capable of accomplishing all NIBP measurement items;
Comply with EC safety design;
Comply with all NIBP standard of ANSI/AAMI;
Applies to adults, children and Newborn;
5V/12V single power supply to avoid interference with the digital circuit by the pump;
Fully compatible with the protocol of CAS Non-invasive blood pressure module (NIBP)

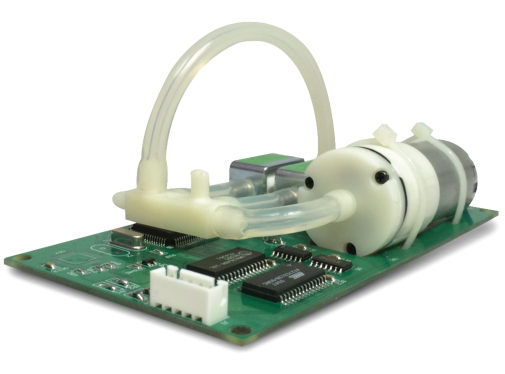

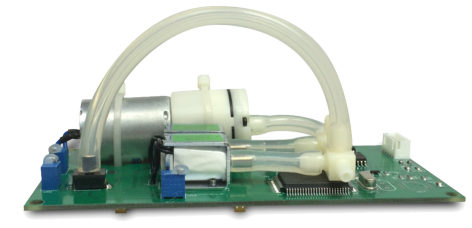

MD-IBP2 is a Small Board

NIBP Pump:

1. folw>1.8L/MIN
2. pressure>500 mmHg
3. life>50000times
4. inflation time<10s in 500CC 5.noise<52dB
Measuring range










Adult:
30 to 255 mmHg systolic blood pressure
An average of 20 to 235 mmHg pressure
15 to 220 mmHg diastolic blood pressure
Pulse rate of 30 to 240 times / min

 Newborn:
30 to 135 mmHg systolic blood pressure
An average of 20 to 125 mmHg pressure
15 to 110 mmHg diastolic blood pressure
Pulse Rate of 40 to 240 times / min
 Measurement time Adults: up to more than 120 seconds;
Newborn: up to more than 90 seconds;
Restriction on software over-voltage Adult:  Less than 290mmHg;
Newborns: no more than 145mmHg;
Protection on hardware over-voltage Adult: 300 ±10 mmHg;
Newborn: 150 ±4 mmHg;
Measuring principle Oscillometry
Deflation approach ladder Deflated
The initial inflation pressure value Adult: 150 mmHg;
Newborn: 70 mmHg;
Sensor zero reset Prior to each measurement
Resolution 1 mmHg
Measurement accuracy Maximum average deviation: no more than ± 5 mmHg;
maximum standard deviation: less than 8 mmHg;
Pressure accuracy instructions ± 3 mmHg
Leakage less than 6 mmHg Per minute;
Electrical performance Voltage: 12 VDC (adapt to the corresponding valve), 5 VDC
Quiescent current: 80 mA
Measurement current: 200 mA
inflated current: 600mA
Environment Operating Temperature: 0 to 55 Celsius degrees
Storage Temperature: -20 to 65 Celsius degrees
Humidity Range: 0 to 95%, non-condenser
Operation Altitude: -500 m to 4600 meters
Life Span: can operate 100,000 blood pressure measurements
Size 12.6 cm x 6.8 cm x 2.8 cm
Weight: 180 g

Options
NIBP Cuff (infant 8 - 14 cm 5/Bag)
NIBP Cuff (Child 13 - 20 cm 5/Bag)
NIBP Cuff (Small Adult 18 - 26 cm 5/Bag)
NIBP Cuff (Adult 26 - 35 cm 5/Bag)
NIBP Cuff (Adult Long 29 - 38 cm 5/Bag)
NIBP Cuff (Large Adult 32 - 42 cm 5/Bag)
NIBP Cuff (Large Adult Long 35 - 44 cm 5/Bag)
NIBP Cuff (Thigh 42 - 50 cm)
NIBP Tube 150cm

Product Features

    The latest digital signal processing technology to achieve anti-noise and software algorithms anti-interference by moving arm;
    Capable of accomplishing all NIBP measurement items;
    Comply with EC safety design;
    Comply with all NIBP standard of ANSI/AAMI;
    Applies to adults, children and Newborn;
    5V/12V single power supply to avoid interference with the digital circuit by the pump;
    Fully compatible with the protocol of CAS Non-invasive blood pressure module (NIBP)
    MD-IBP2 is a Small Board

    NIBP Pump:

    1. folw>1.8L/MIN
    2. pressure>500 mmHg
    3. life>50000times
    4. inflation time<10s in 500CC 5.noise<52dB


Product Specifications

    Measuring range










    Adult:
    30 to 255 mmHg systolic blood pressure
    An average of 20 to 235 mmHg pressure
    15 to 220 mmHg diastolic blood pressure
    Pulse rate of 30 to 240 times / min

     Newborn:
    30 to 135 mmHg systolic blood pressure
    An average of 20 to 125 mmHg pressure
    15 to 110 mmHg diastolic blood pressure
    Pulse Rate of 40 to 240 times / min
     Measurement time Adults: up to more than 120 seconds;
    Newborn: up to more than 90 seconds;
    Restriction on software over-voltage Adult:  Less than 290mmHg;
    Newborns: no more than 145mmHg;
    Protection on hardware over-voltage Adult: 300 ±10 mmHg;
    Newborn: 150 ±4 mmHg;
    Measuring principle Oscillometry
    Deflation approach ladder Deflated
    The initial inflation pressure value Adult: 150 mmHg;
    Newborn: 70 mmHg;
    Sensor zero reset Prior to each measurement
    Resolution 1 mmHg
    Measurement accuracy Maximum average deviation: no more than ± 5 mmHg;
    maximum standard deviation: less than 8 mmHg;
    Pressure accuracy instructions ± 3 mmHg
    Leakage less than 6 mmHg Per minute;
    Electrical performance Voltage: 12 VDC (adapt to the corresponding valve), 5 VDC
    Quiescent current: 80 mA
    Measurement current: 200 mA
    inflated current: 600mA
    Environment Operating Temperature: 0 to 55 Celsius degrees
    Storage Temperature: -20 to 65 Celsius degrees
    Humidity Range: 0 to 95%, non-condenser
    Operation Altitude: -500 m to 4600 meters
    Life Span: can operate 100,000 blood pressure measurements
    Size 12.6 cm x 6.8 cm x 2.8 cm
    Weight: 180 g

Related Accessories

    Options
    NIBP Cuff (infant 8 - 14 cm 5/Bag)
    NIBP Cuff (Child 13 - 20 cm 5/Bag)
    NIBP Cuff (Small Adult 18 - 26 cm 5/Bag)
    NIBP Cuff (Adult 26 - 35 cm 5/Bag)
    NIBP Cuff (Adult Long 29 - 38 cm 5/Bag)
    NIBP Cuff (Large Adult 32 - 42 cm 5/Bag)
    NIBP Cuff (Large Adult Long 35 - 44 cm 5/Bag)
    NIBP Cuff (Thigh 42 - 50 cm)
    NIBP Tube 150cm
