Product Features

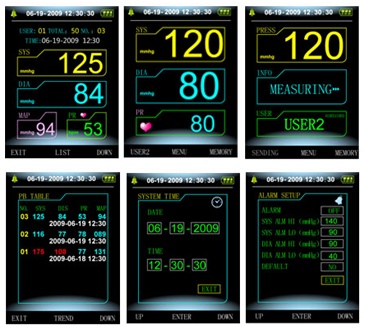

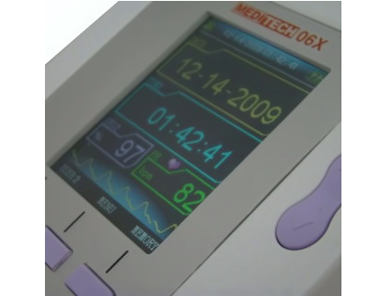

2.8" TFT color screen 320x240 pixels
NIBP measurement
SpO2 measurement
Trusted accuracy clinically validated
Oscillometry with step deflation
Multi-user mode (Adult Child New born)
Built-in flash memory up to 100 items for each user (3 User)
Built-in BP Alarms
Automatic cuff inflation and deflation
Reliable power supply with or AA battery
Battery status indicator
Data Review: List and Trend
Setting for Time .Date .mHg/kPa .Alarm .User type .Language

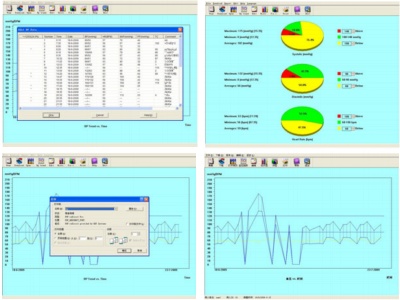

Sync with PC-based Software via USB port accurate analysis systems







Comes with PC Software for data transfer
Show trend graph analytical diagrams Edit add notes to every piece of data
Edit examinees information medical advices condition descriptions present drug usage info etc.
Print report support print preview


Product Specifications

Measurement Accuracy
SpO2 70%～100%    ±2%
0%～69%      undefined
PR ±2bpm or ±2% (select larger)
Measurement Performance In Weak Filling Condition
pulse-filling ratio : 0.4% SpO2 error ±4%
pulse rate error ±2bpm or ±2% (select larger)
Optical Sensor
Red light wavelength is 660nm 6.65mW
Infrared wavelength is 880nm 6.75mW
Display 2.8'' color LCD Display

NIBP Specifications
Measurement Method Oscillometric method

Working modes Automatic
Measurement Range Pressure adult 0~290mmHg（0~38.6kPa）
pediatric 0~235mmHg（0~31.3kPa）
neonatal 0~140mmHg（0~18.6kPa）
Pulse: 40~240/min
Inflation adult 160mmHg
pediatric 120mmHg
neonatal 70mmHg
Alarm Range adult mode SYS ALM: 40~270 mmHg
DIA ALM: 10~215 mmHg
pediatric mode SYS ALM: 40~200 mmHg
DIA ALM: 10~150 mmHg
neonatal mode SYS ALM: 40~135 mmHg
DIA ALM: 10~100 mmHg
Overpressure protect adult mode 295±5mmHg
pediatric mode 240±5mmHg
neonatal mode 145±5mmHg

Resolution
Pressure 1mmHg

Measurement Accuracy
Cuff Pressure Accuracy ±3mmHg
Error The BP Value of the device is equivalence with the measurement value of Stethoscopy. The error meets all the conditions in the YY0667-2008.
Operating Temperature/ Humidity +5oC~40 oC      .  15%RH～80%RH
Transport and Storage Temperature/Humidity -20oC~+55oC     .  ≤95%RH
Atmospheric pressure 80kPa~105kPa
Battery 4 "AA" alkaline batteries AC Adapter separately sold
Main Unit Dimensions 130(L)*110(W)*80mm(H)
Main Unit Weight 300gram


Related Accessories

Standard:


NIBP Cuff (Adult).   ......... 1Pcs
SpO2 cable (Adult)  ........ 1Pcs
AA Battery   .................... 1Pcs
USB Cable  .................... 1Pcs

Options:


SpO2 Cable (Adult hard shell sensor)
SpO2 Cable (Adult Soft shell sensor)
SpO2 Cable (Neonatal soft sensor)

SpO2 Cable (Pediatric hard shell sensor)
SpO2 Cable (Pediatric Soft shell sensor)
SpO2 Cable (Child finger clip)
SpO2 Cable (multi-site Y type)
SpO2 External Cable
NIBP Cuff (infant 8 - 14 cm 5/Bag)

NIBP Cuff (Child 13 - 20 cm 5/Bag)
NIBP Cuff (Small Adult 18 - 26 cm 5/Bag)
NIBP Cuff (Adult 26 - 35 cm 5/Bag)
NIBP Cuff (Adult Long 29 - 38 cm 5/Bag)
NIBP Cuff (Large Adult 32 - 42 cm 5/Bag)
NIBP Cuff (Large Adult Long 35 - 44 cm 5/Bag)
NIBP Cuff (Thigh 42 - 50 cm)
NIBP Tube 150cm
Power Adapter
Rechargable Battery
Charger (Panasonic)
