Fetal Heat Doppler for Personal Use - Sonotech® Lite

CE marked

Made by ABS

Not made with natural rubber latex

Sonotch® Lite

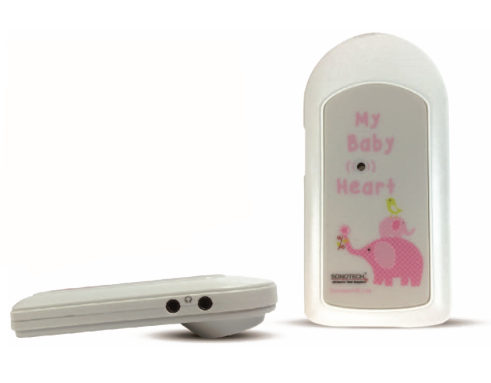

Sonotech® Lite Fetal Heart Doppler

Designed as a Ultrasonic probe to easy find the FHB and more comfortable for pregnant.

Instruction marks are printed by laser and wont erased by using.

Head phone quality for clear sound and less noise

The option phone cable compatible for almost all apps so you can record by phone and enjoy the apps functions

Soft case available with two colors" purple & Gray"

Read Less

Sonotech® Lite Fetal Heart Doppler

Designed as a Ultrasonic probe to easy find the FHB and more comfortable for pregnant.

Instruction marks are printed by laser and wont erased by using.

Head phone quality for clear sound and less noise

The option phone cable compatible for almost all apps so you can record by phone and enjoy the apps functions

Soft case available with two colors" purple & Gray"

Small Fetal heart beat indicator.

Easy to use

Clear sound and less noise

can hang it by hang lace

Light weight of 80g, batteries included

Runs on standard AAA batteries and continuous working time is 8 hours

FHR Performance
FHR Measuring Range: 50~240BPM (BPM: beat per minute)
Resolution: 1BPM
Accuracy: ±2BPM
Power consumption:<0.8W
Auto Shut-OFF: After 1 minute no signal, power off automatically.
Battery Type Recommended: Two pieces of 1.5 V DC battery (SIZE AA LR6).

Ultrasound sensor:
Nominal Frequency: 2.0MHz,
Working Frequency: 2.0MHz±10%
P-: <0.5MPa
Iob: <10 mW/cm2
Ispta: <50mW/cm2
Ultrasonic Output Intensity: Isata<5 mW/cm2
Ultrasonic Output Power: P<10 mW

Working Mode: Continuous wave Doppler
Effective Radiating Area of Transducer: 157mm2±15%
Temperature: +5℃～+40℃
Humidity: ≤80％
Atmospheric Pressure: 70 kPa～l06kPa

Transport and Storage:
Temperature: -10℃～+55℃
Humidity: ≤93％
Atmospheric Pressure: 50 kPa～l06kPa

Standard:

Audio stereo Cable .................... 1Pcs

AAA Battery ............................... 2Pcs
Headphone ............................... 1Pcs
Cleaning Cloth .......................... 1Pcs

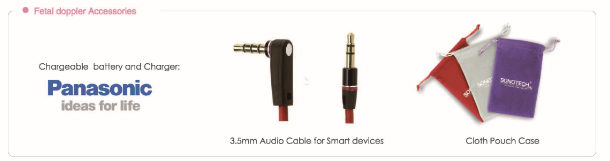

Options:

External mini Speakers

Carry Case

Audio smart device Cable (Android .iOs)
Recharge-able Battery
Charger (Panasonic)

Product Features

Small Fetal heart beat indicator.

Easy to use

Clear sound and less noise

can hang it by hang lace

Light weight of 80g, batteries included

Runs on standard AAA batteries and continuous working time is 8 hours

Product Specifications
