Product Features

Standalone 2MHz Water Resistant (IPX4) Probe
FHR Display: Bar Graph | Histogram | Waveform
Working Diagnostics: Realtime, Average, & Manual
Out of Range Fetal Heart Rate Alarm Display
Backlit LCD Battery Status Indicator Display
+8 Hrs Operation on 2 AA Alkaline Batteries

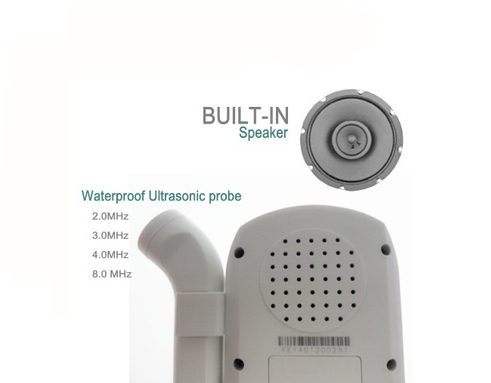

Built In Speaker (=1.8W) with Volume Control
Audio Out Provisions: Headphones, PC Recording
Auto Power Off on No Signal (8 seconds) Function
FHR Measuring Diagnostic Range: 50~240BPM
Diagnostics Accuracy: } +/-2 Beats per Minute
Working Ultrasonic Frequency: 2.0MHz} 10%
Ultrasonic Opt Intensity: Isata < 5 mW/cm2
Ultrasonic Working Mode: Cont Wave Doppler
Available in two Colours- Blue and Pink

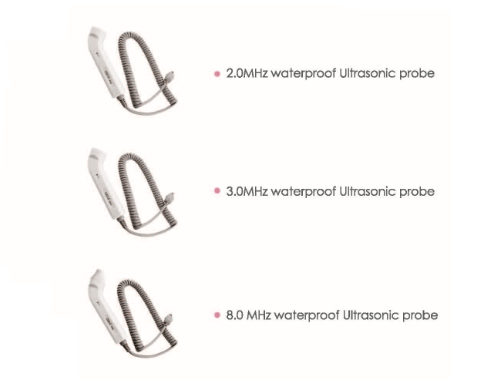

Ultrasonic pocket probes types:

2.0 MHz waterproof Ultrasonic probe
3.0 MHz waterproof Ultrasonic probe
4.0 MHz waterproof Ultrasonic probe
8.0 MHz waterproof Ultrasonic probe


Product Specifications

Display: 45mm×25mm LCD display

FHR Performance
FHR Measuring Range: 50~240BPM (BPM: beat per minute)
Resolution: 1BPM
Accuracy: ±2BPM
Power consumption:<0.8W
Auto Shut-OFF: After 1 minute no signal, power off automatically.
Battery Type Recommended: Two pieces of 1.5 V DC battery (SIZE AA LR6).

Probe:
Nominal Frequency:        2.0MHz, 3Mhz, 4Mhz, 8Mhz
Working Frequency:        2.0MHz±10%
                                        P-: <0.5MPa
                                        I_ob: <10 mW/cm²
                                        I_spta: <50mW/cm²
Ultrasonic Output Intensity: Isata<5 mW/cm²
Ultrasonic Output Power:    P<10 mW

Working Mode: Continuous wave Doppler
Effective Radiating Area of Transducer: 157mm²±15%
Temperature:               +5℃～+40℃
Humidity:                      ≤80％
Atmospheric Pressure: 70 kPa～l06kPa

Transport and Storage:
Temperature: -10℃～+55℃
Humidity: ≤93％
Atmospheric Pressure: 50 kPa～l06kPa

Related Accessories

Standard:


2.0 MHz Ultrasonic probe   ......... 1Pcs
AA Battery   ............................... 2Pcs
Cleaning Cloth  .......................... 1Pcs

Options:

3.0 MHz waterproof Ultrasonic probe
4.0 MHz waterproof Ultrasonic probe
8.0 MHz waterproof Ultrasonic probe
Carry Case
Audio stereo Cable
Audio smart device Cable
Recharge-able Battery
Charger (Panasonic)
