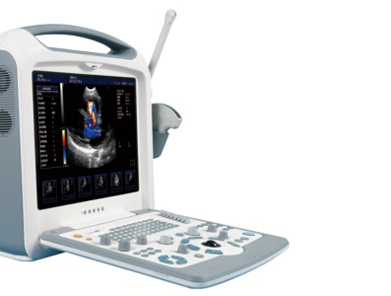

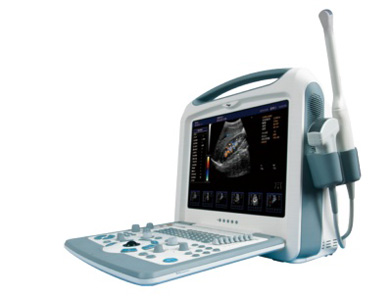

S8i Color Portable Ultrasound Scanner
Application: Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etc
Image processing: THI, speckle-reduction, color coder, frame averaging, micro- angle adjustment, wall filter, 256 grey scale, scanning angle/width control, composite processing of tissue and blood flow image
Measurement & report packages: GYN(four edition for GA calculation), cardiac, vascular, urology, andriatrics, peripheral vascular, multiple births, orthopedic surgery and etc.

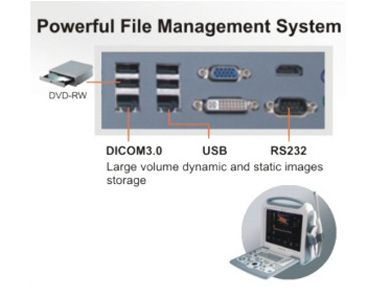

Input/output interface: VGA, network, 4 USB, 2 probe interface, DVD-ROM, SONY print with USB port
It applies cutting-edge technologies; incorporate sophisticated features like real-time 4D, TDI, and TEE scanning into one compact box.
Read More Application: Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etc
Image processing: THI, speckle-reduction, color coder, frame averaging, micro- angle adjustment, wall filter, 256 grey scale, scanning angle/width control, composite processing of tissue and blood flow image
Measurement & report packages: GYN(four edition for GA calculation), cardiac, vascular, urology, andriatrics, peripheral vascular, multiple births, orthopedic surgery and etc.
Input/output interface: VGA, network, 4 USB, 2 probe interface, DVD-ROM, SONY print with USB port
It applies cutting-edge technologies; incorporate sophisticated features like real-time 4D, TDI, and TEE scanning into one compact box.
Displaying mode
B, BB, 4B, BM, M, PW, B/C, B/C/D, B/D,duplex, triplex, part zoom, CFM, CPA
Signal processing:
Full-digital beam forming, dynamic filter, space-time filter, dynamic real time
Receiving focusing, RDA, DRA, spectral processing, CFM processing, gray scale 256, receiving signals dynamic range≥150, All digital, real-time dynamic focusing,
Dynamic aperture in all fields
Image conversion
Up/down conversion
Left/right conversion
Doppler Sound output volume adjustable
Wall filter adjustable
Base line adjustable
Sampling frame adjustable
Area changeable angle changeable
Spectrum sampling volume adjustable
Spectrum sampling volume angle adjustable
PRF adjustable
Image processing:
Gain control
TGC, PW Gain, CFM gain
General measurement
B mode-distance, circumference, area, volume, ration, angle, %stenosis, histogram
M mode- distance, time, velocity, heart rate
OB packages:
EDD table :GS, BPD, CRL, FL, HL, TAD, LV, OFD, NT, AC, HC, AFI, GA and EDD calculated by LMP, BBT calculate GA and EDC, Fetal physiological score, Fetal growth curve
OB measuring and calculation report
Uterine measurement (Cervical length, endometrial thickness, uterine volume)
B, BB, 4B, BM, M, PW, B/C, B/C/D, B/D,duplex, triplex, part zoom, CFM, CPA
Signal processing:
Full-digital beam forming, dynamic filter, space-time filter, dynamic real time
Receiving focusing, RDA, DRA, spectral processing, CFM processing, gray scale 256, receiving signals dynamic range≥150, All digital, real-time dynamic focusing,
Dynamic aperture in all fields
Image conversion
Up/down conversion
Left/right conversion
Doppler Sound output volume adjustable
Wall filter adjustable
Base line adjustable
Sampling frame adjustable
Area changeable angle changeable
Spectrum sampling volume adjustable
Spectrum sampling volume angle adjustable
PRF adjustable
Image processing:
Gain control
TGC, PW Gain, CFM gain
General measurement
B mode-distance, circumference, area, volume, ration, angle, %stenosis, histogram
M mode- distance, time, velocity, heart rate
OB packages:
EDD table :GS, BPD, CRL, FL, HL, TAD, LV, OFD, NT, AC, HC, AFI, GA and EDD calculated by LMP, BBT calculate GA and EDC, Fetal physiological score, Fetal growth curve
OB measuring and calculation report
Uterine measurement (Cervical length, endometrial thickness, uterine volume)
Comes with
Multi frequency convex probe
Multi frequency linear probe
Optional modules
CW Doppler and “Free Xros™ Imaging “(for cardiac applies) module
Smart3D module (for 3 dimensions with 2D standard convex probe)
“iScape View” module
DICOM 3.0 module
Optional probes
Micro-convex array Transvaginal probe
Micro-convex probe
Linear probe
Intdo rectal linear probe
Phased array probe 2P2 (for cardiac applies)
Optional Accessories
Footswitch by USB port
Biopsy guide for convex probe
Biopsy guide for micro-convex probe
Biopsy guide for linear probe
Biopsy guide for micro-convex TV probe
Biopsy guide for intrarectal linear probe
Standard:
Multi frequency convex probe ...... 1Pcs
Power Cable ............................... 1Pcs
Cleaning Cloth ............................ 1PcsOptions:
Mobile trolley
CW Doppler and “Free Xros™ Imaging “(for cardiac applies) module
Smart3D module (for 3 dimensions with 2D standard convex probe)
“iScape View” module
DICOM 3.0 module
Micro-convex array Transvaginal Probe
Micro-convex Probe
Linear Probe
Volume Probe
Volume Probe
Intdo rectal linear probe
Phased array probe 2P2 (for cardiac applies)
Footswitch by USB port
Biopsy guide for convex probe
Biopsy guide for micro-convex probe
Biopsy guide for linear probe
Biopsy guide for micro-convex TV probe
Biopsy guide for intrarectal linear probe
Product Features
Displaying mode
B, BB, 4B, BM, M, PW, B/C, B/C/D, B/D,duplex, triplex, part zoom, CFM, CPA
Signal processing:
Full-digital beam forming, dynamic filter, space-time filter, dynamic real time
Receiving focusing, RDA, DRA, spectral processing, CFM processing, gray scale 256, receiving signals dynamic range≥150, All digital, real-time dynamic focusing,
Dynamic aperture in all fields
Image conversion
Up/down conversion
Left/right conversion
Doppler Sound output volume adjustable
Wall filter adjustable
Base line adjustable
Sampling frame adjustable
Area changeable angle changeable
Spectrum sampling volume adjustable
Spectrum sampling volume angle adjustable
PRF adjustable
Image processing:
Gain control
TGC, PW Gain, CFM gain
General measurement
B mode-distance, circumference, area, volume, ration, angle, %stenosis, histogram
M mode- distance, time, velocity, heart rate
OB packages:
EDD table :GS, BPD, CRL, FL, HL, TAD, LV, OFD, NT, AC, HC, AFI, GA and EDD calculated by LMP, BBT calculate GA and EDC, Fetal physiological score, Fetal growth curve
OB measuring and calculation report
Uterine measurement (Cervical length, endometrial thickness, uterine volume)
B, BB, 4B, BM, M, PW, B/C, B/C/D, B/D,duplex, triplex, part zoom, CFM, CPA
Signal processing:
Full-digital beam forming, dynamic filter, space-time filter, dynamic real time
Receiving focusing, RDA, DRA, spectral processing, CFM processing, gray scale 256, receiving signals dynamic range≥150, All digital, real-time dynamic focusing,
Dynamic aperture in all fields
Image conversion
Up/down conversion
Left/right conversion
Doppler Sound output volume adjustable
Wall filter adjustable
Base line adjustable
Sampling frame adjustable
Area changeable angle changeable
Spectrum sampling volume adjustable
Spectrum sampling volume angle adjustable
PRF adjustable
Image processing:
Gain control
TGC, PW Gain, CFM gain
General measurement
B mode-distance, circumference, area, volume, ration, angle, %stenosis, histogram
M mode- distance, time, velocity, heart rate
OB packages:
EDD table :GS, BPD, CRL, FL, HL, TAD, LV, OFD, NT, AC, HC, AFI, GA and EDD calculated by LMP, BBT calculate GA and EDC, Fetal physiological score, Fetal growth curve
OB measuring and calculation report
Uterine measurement (Cervical length, endometrial thickness, uterine volume)
Comes with
Multi frequency convex probe
Multi frequency linear probe
Optional modules
CW Doppler and “Free Xros™ Imaging “(for cardiac applies) module
Smart3D module (for 3 dimensions with 2D standard convex probe)
“iScape View” module
DICOM 3.0 module
Optional probes
Micro-convex array Transvaginal probe
Micro-convex probe
Linear probe
Intdo rectal linear probe
Phased array probe 2P2 (for cardiac applies)
Optional Accessories
Footswitch by USB port
Biopsy guide for convex probe
Biopsy guide for micro-convex probe
Biopsy guide for linear probe
Biopsy guide for micro-convex TV probe
Biopsy guide for intrarectal linear probe
Product Specifications
