Defi® 8
Defi® 8 is a compact,durable,light weighted defibrillator which integrated monitoring,manual defibrillation,AED and pacer(option).

It is a professional biphasic defibrillator-monitor suitable for hospitals and clinics
Defi® 8 is a compact,durable,light weighted defibrillator which integrated monitoring,manual defibrillation,AED and pacer(option).

It is a professional biphasic defibrillator-monitor suitable for hospitals and clinics
Read More
Defibrillator:
Large TFT screen 7 inch
ECG    I II III AVR AVL AVF V1 V6 GND
Defibrillator type   Manual Synchronized A synchronized
Output waveform        Monophonic technology
                                    Biphasic technology (optional)
Energy accuracy   ∠+1%
Energy selection  0.3.5.7.10.20.30.50.100.200.300.360 joule(nominal at a resistance of 50)
Charging time       Maximum 8 seconds to 360 Joules

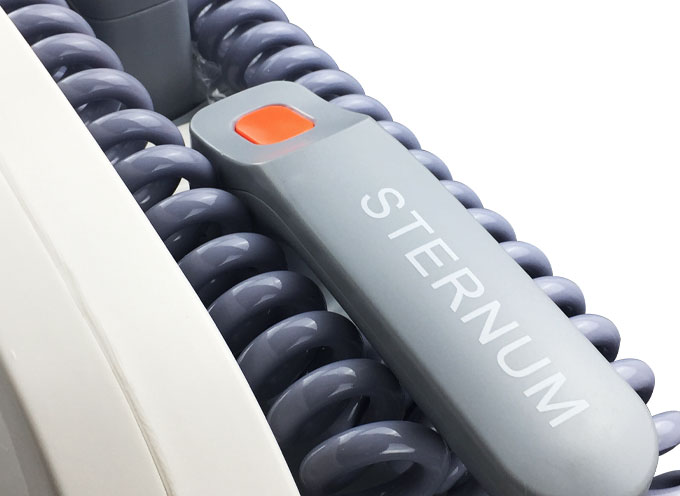

Standard Adult/Pediatric Paddles   Reusable external adult paddles(pediatric paddles integrated)
Come with two battery for longer capacity


Standard parameter & configuration
Defi8: ECG .PR .DEFIBRILLATOR

Options:
Recorder
Dimensions: L320 x W205 x H410
Weight: 9.8kg

Technical specifications

Defibrillator
Defibrillator type                    Manual Synchronized Asynchronized
Out put waveform                  Monophasic technology
Energy accuracy                   <+1%
Energy selection                    0.3.5.7.10.20.30.50.100.200.300.360 joule (nominal at a resistance of 50)
Charging time                        Maximum 8 seconds to 360 Joules

Standard Adult/Pediatric Paddles
 Reusable external adult paddles (pediatric paddles integrated)

Power requirements
AC Power supply                    110V 60 Hz /220V50 Hz
Vehicle Voltage                        DC 12V

Internal Battery Backup
Battery type                              Rechargeable lead-acid battery/ lithium battery(optional)
Charging time                          Time-Minimum of 4 hours for full charging
Battery charging                       During AC Power Supply operation of the device.
Charging /Low Battery             Indication  Red LED
Battery Capacity                      100% of the battery will provide 120 mins of monitoring and 30 discharges at 360 joules.

Display
LED Dimensions                      7’diagonal {155mm*88mm}
Type                                         High resolution true-color graphic LED
Resolution                                480X234

ECG
ECG lead:                                 I II III AVR AVL AVF V1 V6 GND
S-T segment analysis:              -2.0/2.0mv
Arrhythmia analysis:                  yes
Protection:                                With stand 4000vAc/50Hz voltage in isolation and work against eletrosurgical  interfere and defibrillation

Pulse range
Pulse range:                             0-255bpm


Optional

Recorder (Printer)

Pulse Oximetry (spO2) Optional
Display:                                        SpO2 value pulse histongram waveform Pulse
Range:                                          0~99%for adult pediatric and neonatal patients
Probe:                                           standard adult finger clip


Standard:

EKG Cable (5 Leads) ...... 1Pcs
Ground Wire    ................. 1Pcs
Battery   ........................... 2Pcs
Power cable  ................... 1Pcs
Fuse  ............................... 2Pcs
Cleaning Cloth  ................ 1Pcs
Paper Role

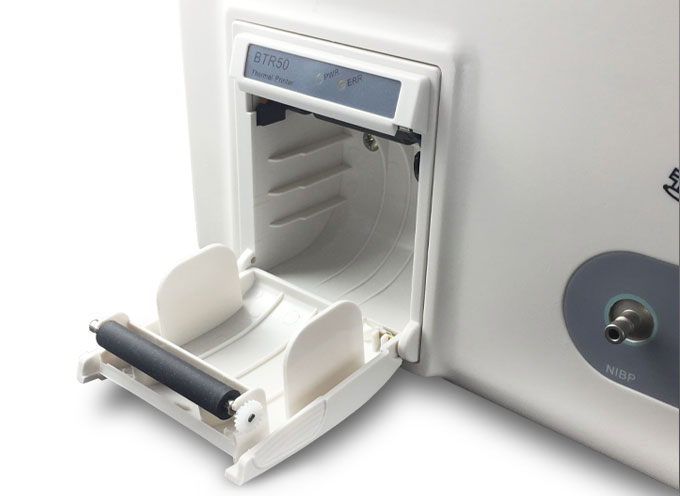

Thermal printer
Defibrillator Wall mounts (3 Models)
Defibrillator Trolley (5 Models)
Defibrillator carry bag


Product Features

    Defibrillator:
    Large TFT screen 7 inch
    ECG    I II III AVR AVL AVF V1 V6 GND
    Defibrillator type   Manual Synchronized A synchronized
    Output waveform        Monophonic technology
                                        Biphasic technology (optional)
    Energy accuracy   ∠+1%
    Energy selection  0.3.5.7.10.20.30.50.100.200.300.360 joule(nominal at a resistance of 50)
    Charging time       Maximum 8 seconds to 360 Joules
    Standard Adult/Pediatric Paddles   Reusable external adult paddles(pediatric paddles integrated)
    Come with two battery for longer capacity


Product Specifications

    Standard parameter & configuration
    Defi8: ECG .PR .DEFIBRILLATOR

    Options:
    Recorder
    Dimensions: L320 x W205 x H410
    Weight: 9.8kg

    Technical specifications

    Defibrillator
    Defibrillator type                    Manual Synchronized Asynchronized
    Out put waveform                  Monophasic technology
    Energy accuracy                   <+1%
    Energy selection                    0.3.5.7.10.20.30.50.100.200.300.360 joule (nominal at a resistance of 50)
    Charging time                        Maximum 8 seconds to 360 Joules

    Standard Adult/Pediatric Paddles
     Reusable external adult paddles (pediatric paddles integrated)

    Power requirements
    AC Power supply                    110V 60 Hz /220V50 Hz
    Vehicle Voltage                        DC 12V

    Internal Battery Backup
    Battery type                              Rechargeable lead-acid battery/ lithium battery(optional)
    Charging time                          Time-Minimum of 4 hours for full charging
    Battery charging                       During AC Power Supply operation of the device.
    Charging /Low Battery             Indication  Red LED
    Battery Capacity                      100% of the battery will provide 120 mins of monitoring and 30 discharges at 360 joules.

    Display
    LED Dimensions                      7’diagonal {155mm*88mm}
    Type                                         High resolution true-color graphic LED
    Resolution                                480X234

    ECG
    ECG lead:                                 I II III AVR AVL AVF V1 V6 GND
    S-T segment analysis:              -2.0/2.0mv
    Arrhythmia analysis:                  yes
    Protection:                                With stand 4000vAc/50Hz voltage in isolation and work against eletrosurgical  interfere and defibrillation

    Pulse range
    Pulse range:                             0-255bpm


    Optional

    Recorder (Printer)

    Pulse Oximetry (spO2) Optional
    Display:                                        SpO2 value pulse histongram waveform Pulse
    Range:                                          0~99%for adult pediatric and neonatal patients
    Probe:                                           standard adult finger clip
