ECG Holter 7 days recording - HeartRec® Lite

HeartRec® Lite

HeartRec® Lite Holter ECG is intended for patients requiring ambulatory (Holter) monitoring.
light weigh,large capacity and very professional Software.

Read Less

HeartRec® Lite Holter ECG is intended for patients requiring ambulatory (Holter) monitoring.
light weigh,large capacity and very professional Software.

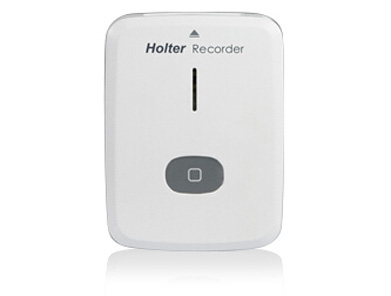

ECG Holter recorder
Automatic Duplex Operation: 12 Channel (10-wire cable),
03 Channel (5-wire or 7-wire selectable )

Compact size light weight

Fully programmable high Fidelity research grade performance

Lower power consumption

Lightning data transfer

Pacemaker detection

Up to 7 days recording

Channels: (Two Work Modes)

12-lead / 3-Channel Switchable by Changing Patient Cable 10-Wire Cable
12-Lead: I II III aVR aVL aVF V1 - V6 5-Wire or 7-Wire

Two models Avalable:
03 Channel

12 Channel

Program able Recording:

Time: 24h-72h for12 channel and up to 7 days for 3 Channel

Sampling Rate: 128—1024/ch/s up to 10000/ch/s Resolution: 12-16 bits

Independent Pace Maker Channel

High Quality Recording:

Frequency Response: 0.05~60Hz CMMR: >80dB

Input Impedance: >5MΩ

Double Work Modes in Data Access:

Removable SD Card: 512MB/1GB/ 2GB USB connector

Low Power Consumption:

One AAA Battery: up to 7 days for 3-Channel

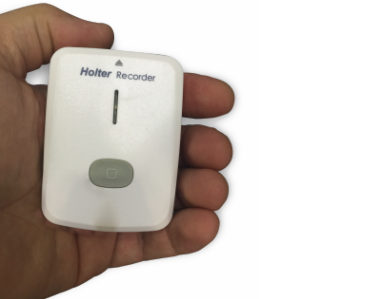

Compact Size & Light Weight:

72mm×53mm×16mm (2.8"×2.0"×0.63")

48g (1.7oz.) battery not included

Standard:

EKG Cable ................ 1Pcs
Plastic Case .................. 1Pcs
Leather Case ................... 1Pcs
Battery ........................... 2Pcs
SD Card ....................... 1Pcs
Cleaning Cloth ................ 1Pcs

Options:

Rechargable Battery
Charger (Panasonic)

Product Features

ECG Holter recorder
Automatic Duplex Operation: 12 Channel (10-wire cable),
03 Channel (5-wire or 7-wire selectable )

Compact size light weight

Fully programmable high Fidelity research grade performance

Lower power consumption

Lightning data transfer

Pacemaker detection

Up to 7 days recording

Product Specifications
