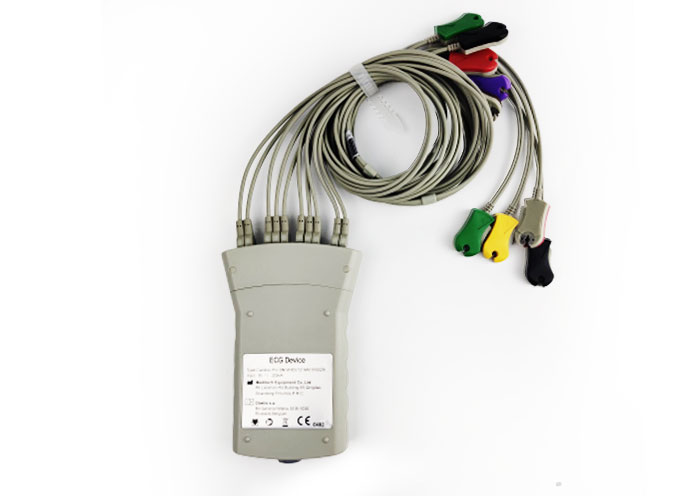

Cardios®
Cardios® PC-based ECG provides you an affordable and portable 12-channel ECG solution with powerful data analysis functions.
Optional advanced analysis functions secure clinical accuracy and maximum decision-making efficiency.


Bluetooth Function available
Cardios® PC-based ECG provides you an affordable and portable 12-channel ECG solution with powerful data analysis functions.
Optional advanced analysis functions secure clinical accuracy and maximum decision-making efficiency.


Bluetooth Function available
Read More
12-Lead Simultaneous ECG
Automatic Measurement and Interpretation
Pacemaker Analysis
Multi-Form Printing
One Key Operation
VCG and VLP

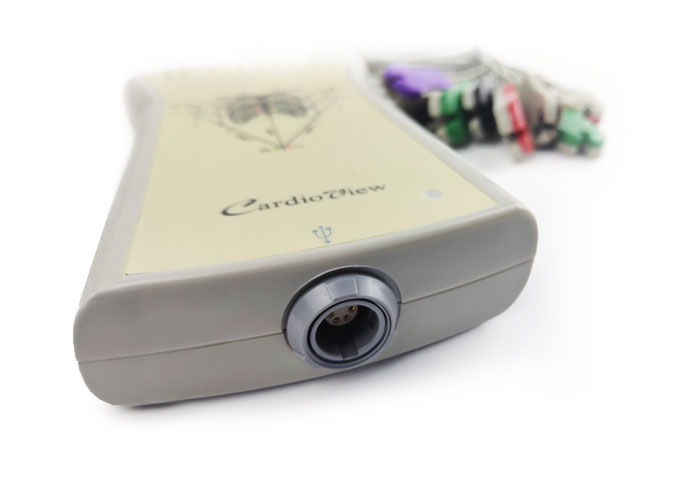

Isolated USB
PC Interface: USB Connector

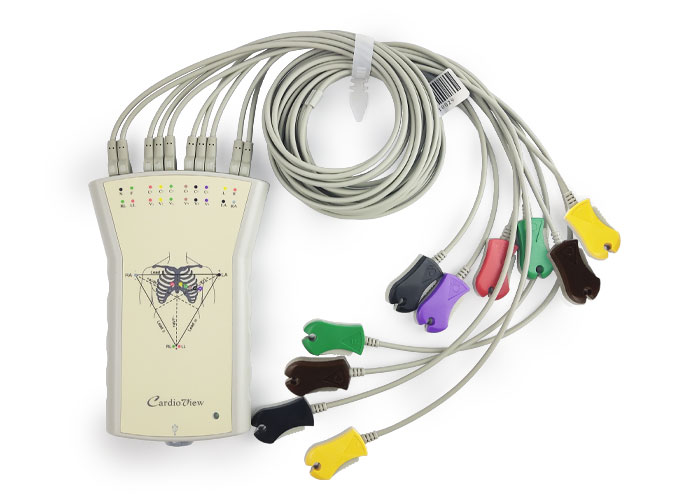

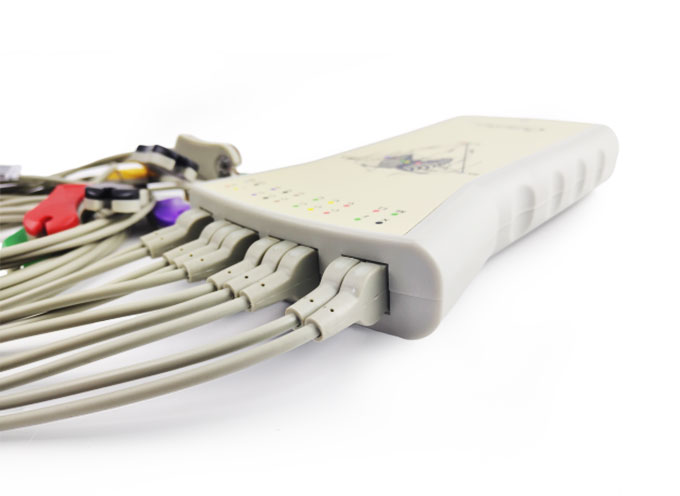

Patient Cable: 10 wires independent  ( easy to remove) NEW

Recording
Speeding: 12.5mm/s 25mm/s 50mm/s
Sensitivity: 10mm/mV 5mm/mV 20mm/mV
Channel: 8

Heart rate indication
Display range 30 to 300 bpm
Display update with every heart beat maximum every 2 seconds.

Data interface
One USB interface for exchange of data with suitable external devices and software
USB interface:
output voltage range: 5V

baseline
Automatic adjustment of the baseline to the optimal recording range in dependence of the signal amplitude.

Meditech PC ECG anti defibrillation & high-frequency protected


Sampling Rate:  A/D:          24K SPS/Channel
Recording:                         1000 SPS/Channel
Quantization Precision:       A/D: 24 Bits
Recording:                          16 Bits
Resolution:                         0.4μV
Frequency Response:        0.05-250Hz (±3dB)
Common Mode Rejection:  >90dB
Input Impedance:               >10MΩ
Time Constant:                   ≥3.2Sec.
Maximum Electrode Potential: ±300mV DC
Dynamic Range:                 ±12mV
Isolate Voltage:                   4000V
Patent Multi-Channel Synchronous A/D
Defibrillation Protect:           Built-in box
Patient Current Leek:          <10μA
Standard:

Chest Electrode        ............ 6Pcs
Clamp Electrode     .............. 4Pcs
Cleaning Cloth   ................... 1Pcs

Options:

PC(Computer) accessories
Trolley
Printer accessories

Product Features

    12-Lead Simultaneous ECG
    Automatic Measurement and Interpretation
    Pacemaker Analysis
    Multi-Form Printing
    One Key Operation
    VCG and VLP
    Isolated USB
    PC Interface: USB Connector
    Patient Cable: 10 wires independent  ( easy to remove) NEW

    Recording
    Speeding: 12.5mm/s 25mm/s 50mm/s
    Sensitivity: 10mm/mV 5mm/mV 20mm/mV
    Channel: 8

    Heart rate indication
    Display range 30 to 300 bpm
    Display update with every heart beat maximum every 2 seconds.

    Data interface
    One USB interface for exchange of data with suitable external devices and software
    USB interface:
    output voltage range: 5V

    baseline
    Automatic adjustment of the baseline to the optimal recording range in dependence of the signal amplitude.

    Meditech PC ECG anti defibrillation & high-frequency protected



Product Specifications

    Sampling Rate:  A/D:          24K SPS/Channel
    Recording:                         1000 SPS/Channel
    Quantization Precision:       A/D: 24 Bits
    Recording:                          16 Bits
    Resolution:                         0.4μV
    Frequency Response:        0.05-250Hz (±3dB)
    Common Mode Rejection:  >90dB
    Input Impedance:               >10MΩ
    Time Constant:                   ≥3.2Sec.
    Maximum Electrode Potential: ±300mV DC
    Dynamic Range:                 ±12mV
    Isolate Voltage:                   4000V
    Patent Multi-Channel Synchronous A/D
    Defibrillation Protect:           Built-in box
    Patient Current Leek:          <10μA

Related Accessories

    Standard:

    Chest Electrode        ............ 6Pcs
    Clamp Electrode     .............. 4Pcs
    Cleaning Cloth   ................... 1Pcs

    Options:

    PC(Computer) accessories
    Trolley
    Printer accessories
