Sonotech® 5
Sonotech®5 Wired probe fetal doppler

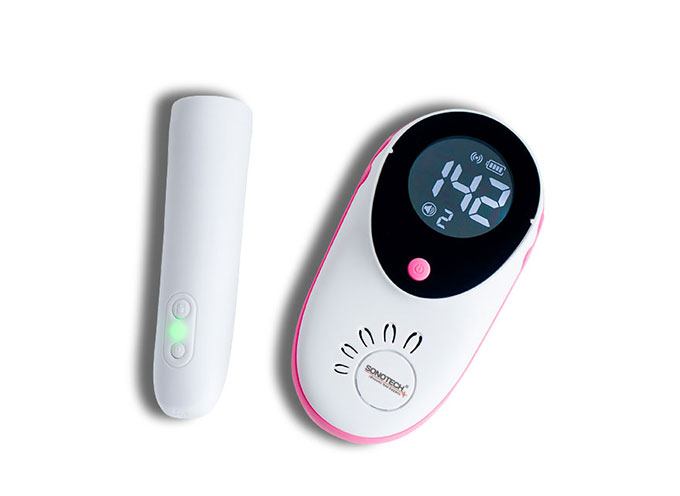

Sonotech®5W Wireless probe fetal doppler (20-30 m)
Sonotech® 5 Probe :
Frequancy 2.5 Mhz
Wired probe easy to connectable by socket (in probe and main device")
Frequancy 2.5 Mhz
Wireless probe 20m (between probe and main device")
Built in rechargeable battery
Record function can be done by probe
Built in rechargeable battery
Record function can be done by probe
Sonotech®5 Wired probe fetal doppler
Sonotech®5W Wireless probe fetal doppler (20-30 m)
Sonotech® 5 Probe :
Frequancy 2.5 Mhz
Wired probe easy to connectable by socket (in probe and main device")
Frequancy 2.5 Mhz
Wireless probe 20m (between probe and main device")
Built in rechargeable battery
Record function can be done by probe
Built in rechargeable battery
Record function can be done by probe
fetal doppler with High sensitivity and Easy to operate
Built in memory for data storage
Alarm function for ubnormal range
Color and large screen
+30 Hrs Operation on 3 AAA Alkaline Batteries
Built In Speaker (=1.8W) with buttom Volume Control
Auto Power Off on No Signal (2 min) Function
Auto Power Off on No Signal (2 min) Function

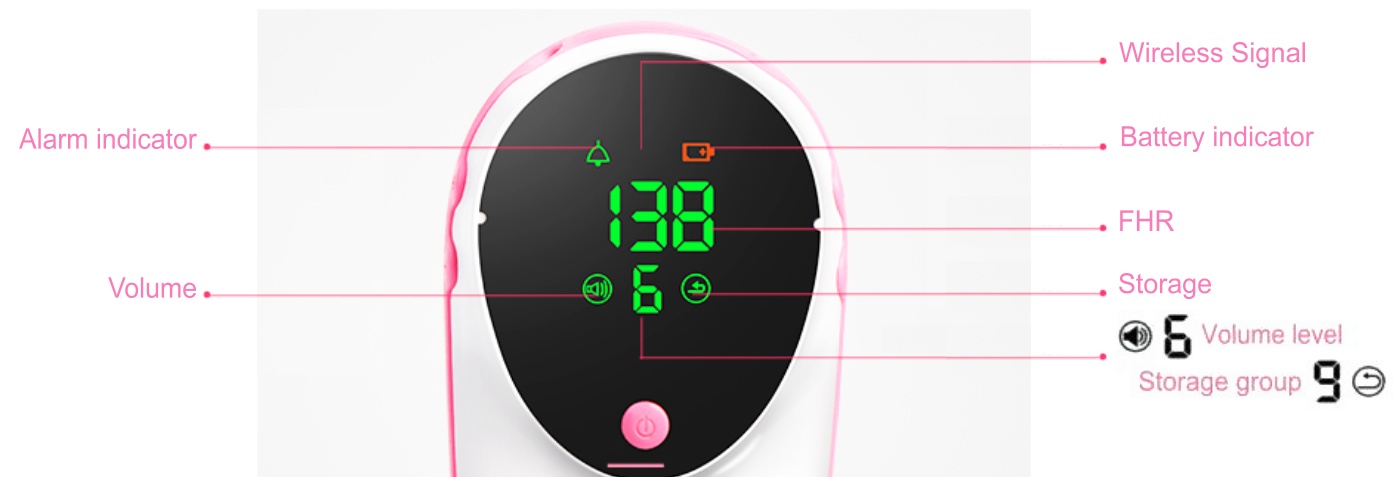

Indicator for :
Signal level (between wirless probe and the doppler)
Alarm for ubnormal FHR(Fetal Heart Rate) range
Volume (0-6)
Battery capacity
Storage number (0-9)
Classification:
Anti-electroshock Type: Internally powered equipment
Anti-electroshock Degree: Type B equipment
Harmful Liquid Proof Degree: IP×4
Suitable Using Range: Suitable for use after the 16th week of pregnancy
FHR Performance:
FHR Measuring Range:50-210BPM(Beat per minute) Resolution:1BPM
Accuracy: ±2BPM Probe:
Working Frequency:2.5MHz±10%
Output power: <10mW/cm²
Spatial-peak temporal peak acoustic pressure: <0.1Mpa
Ovearll Sensitivity: ≥90dB
Physical Characteristic:
Main device: 132mm(L)×68mm(W)×34mm(H)
Probe:
Sonotech 5 models:31mm(Ø)×103mm(H)
Sonotech 5W models:32mm(Ø)×120mm(H)
LCD Display:38mm(Ø)
Weight: About 200g (including batteries) Environment:
Working environment:
Temperature: + 5°C~ + 40°C Humidity:≤80%
Atmospheric Pressure: 70kpa ~106kpa
Transport and Storage:
Temperature:-40℃~ + 55℃ Humidity:≤90%
Atmospheric Pressure: 50kPa ~106kpa
Power:
Host Internal:1.5V Battery×3(Size:AAA) Probe
Internal:3.7V Lithium polymer battery
External:5V USB equipment
power supply.AC/DC Adaptor:
Input:AC100~240V,50Hz/60Hz,0.2A MAX.
Output:DC 5V,1000mA,5VA.
Standard:
USB Wire ................................... 1Pcs
Use for
Sonotech® 5 : to connect the probe and the fetal doppler.
Sonotech® 5W : to charge the wireless probe.
2.5Mhz Fetal doppler probe ........... 1Pcs
Cleaning Cloth ............................... 1PcsAudio stereo Cable ....................... 1Pcs
Options:
Headphone
External mini Speakers
Product Features
fetal doppler with High sensitivity and Easy to operate
Built in memory for data storage
Alarm function for ubnormal range
Color and large screen
+30 Hrs Operation on 3 AAA Alkaline Batteries
Built In Speaker (=1.8W) with buttom Volume Control
Auto Power Off on No Signal (2 min) Function
Auto Power Off on No Signal (2 min) Function
Indicator for :
Signal level (between wirless probe and the doppler)
Alarm for ubnormal FHR(Fetal Heart Rate) range
Volume (0-6)
Battery capacity
Storage number (0-9)
Product Specifications
