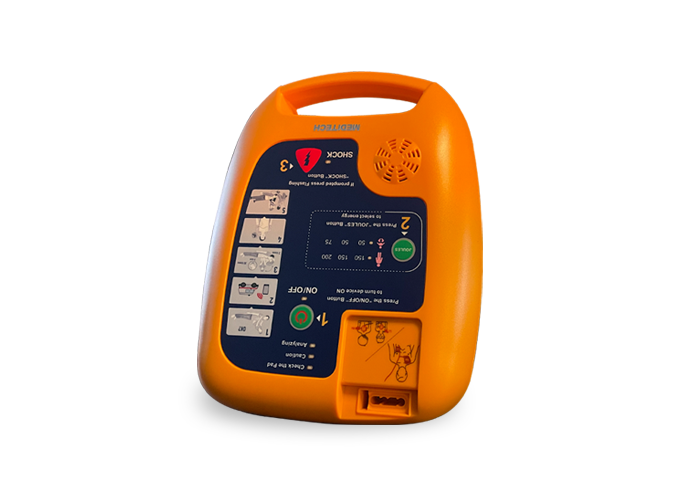

Defi6 AED Portable Defibrillator
Portable AED which can be equipped at home in public places or in the hospitals. It’s easy and convenient to use when give first-aid to patient.

Meditech Defi6 has the function of automatic analyzing patient’s ECG data and then takes corresponding defibrillation energy level according to patient’s current situation which has greatly improved success rate and maximum reduced damage to patient’s heart.



A : Defibrillation counter
B : SD card
C : Pressure sensor icon
E : Date and time
F : Battery
H : Pressure sensor intensity bar
 I :  User mode
J : System status
K : Pad status
L : Filter status
M: Ecg waveform area

Product Features

    Three-step defibrillation process
    Two-button operation
    Extensive voice and visual prompts for the operator
    Biphasic energy output
    Lock-out protection to prevent inadvertent defibrillation
    Continuous event recording for reporting each use to a printer or computer
    Weekly self-test to ensure readiness
    Color  screen for ECG wave and settings
    Adult and Pediatric defibrillation
    CPR coaching(Optional)
    SD Card for recording capacity
    Infra-red for data transfer
    Multi language
    LCD Battery Capacity Indicator

    AED Storage Software (Option)
    Its used to assist upper supervisory system of Automatic External Defibrillator DEFI and support transmission of storage data from lower control system of DEFI. It is used for event documentation, display of real-time ECG, voice prompts waveform, display of voice prompts and print of selected waveforms.

    More Details


Product Specifications

    Portable Defibrillator
    Output: Biphasic Truncated exponential
    Energy sequence: 150J 200J(Adult); 50J 100J(Pediatric)
    Charge Time: 8 sec. to 150J; 4 sec to 50J/ 100J; 10 sec to 200J(New battery)
    Analysis time: 9 sec
    Audible prompts: 20 audible prompts
    Visual Prompts: LED automatic self-test
    Controls: two bultons-On/Off shock
    Output energy accuracy: more or less 15% into any impedance from 25 to 175 Ω
    Output disabled when the patient impedance is outside: 20 Ω to 200 Ω

    Defi6 Battery
    Non-rechargeable: 15V d.c 2.8Ah
    Capacity: 100 discharges at 200 Joules or 120 discharges at 150 Joules
    Shelf Life( 25 ℃±15℃ ): 10 years (5 years storage+5 years standby); 5 years standby (after installation)

    Defi6 AED Portable Defibrillator Physical
    Dimensions: 220*170*70mm
    Weight: 1.5kg

    Operating Humidity: Relative humidity between 30% and 95% (non-condensing)
    Storage temperature (with battery): -20 ℃  to 55 ℃
    Storage humidity (without battery): up to 93% (non-condensing)
